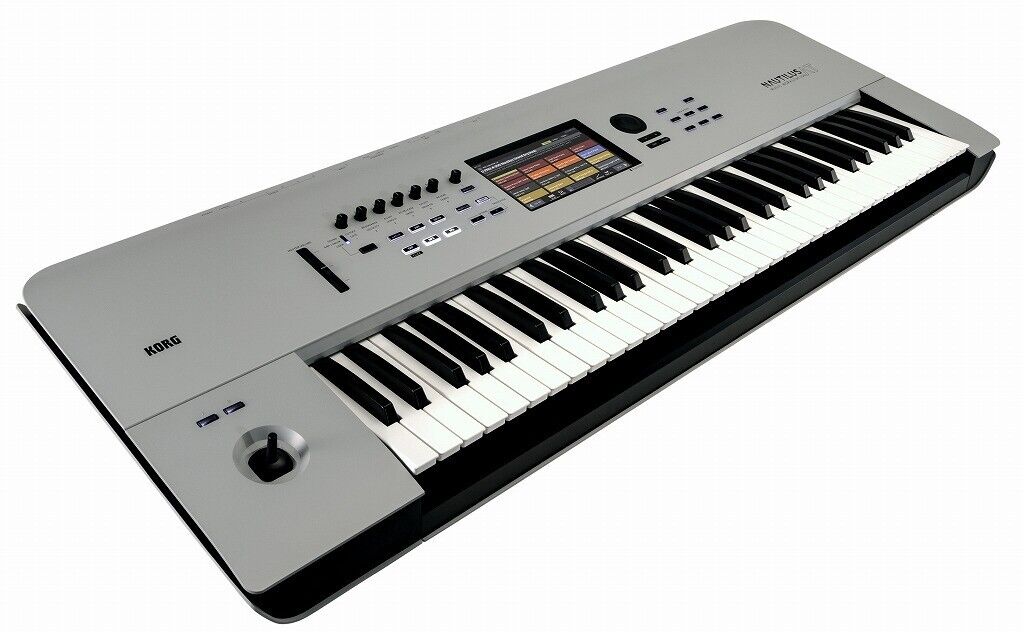

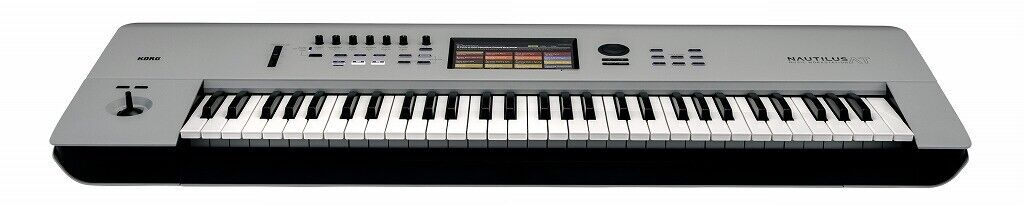

NAUTILUS-61 AT Gray Limited color Gray 61 keys

Synthesizer with aftertouch

Flagship model with aftertouch and perfection.

KORG's flagship workstation, NAUTILUS, is adding two new models to the lineup, the NAUTILUS AT (AfterTouch), available in 61-key and 88-key versions.

NAUTILUS's outstanding expressiveness is now at its peak with the new aftertouch function.

NAUTILUS AT is equipped with a sound library that has been newly tuned for this model, and by adding stimulating aftertouch effects to existing programs, you can fully utilize the expressive power of aftertouch right out of the box.

The dynamics knob, which allows you to instantly control the volume and tone changes depending on the strength (velocity) of the keystrokes, is now combined with aftertouch to fully bring out the potential of NAUTILUS' nine sound engines.

The NAUTILUS AT comes in two types*: an 88-key model with a premium RH3 keyboard that pursues a piano feeling, and a 61-key model with a synth keyboard that features a light response.

*There is no AT version of the NAUTILUS-73.

Premium quality of the flagship model

NAUTILUS is manufactured at the highest level of quality in factories in Japan.

The 88-key model uses the highly acclaimed RH-3 piano keyboard. The hammer action keyboard, divided into four weight levels, provides a very realistic piano feeling even for discerning players.

This RH-3 keyboard is gradually weighted to feel heavier in the bass range and lighter in the treble range, achieving excellent playability.

On the other hand, the 61-key model is equipped with a light-touch synth keyboard, reproducing even complex phrases reliably and smoothly.

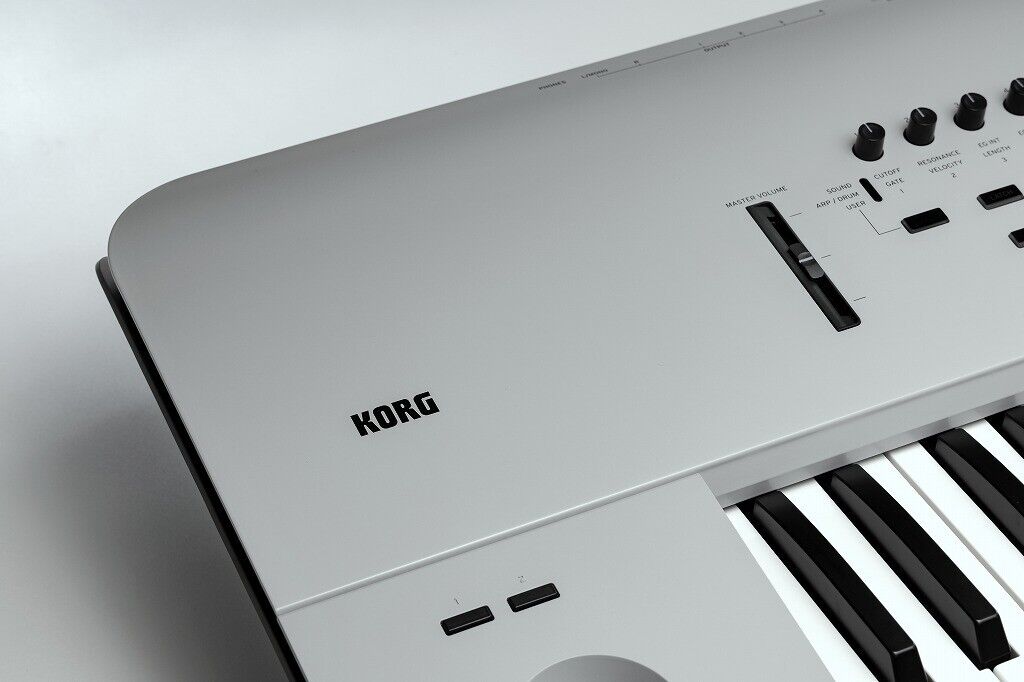

The NAUTILUS AT has the letters "AT" added to the logo on the panel, making it immediately obvious that it is a special model.

Main specifications

Size

1,062 (W) x 386 (D) x 116 (H) mm

Weight

13.0 kg

Keyboard

61 keys: Natural touch semi-weighted keyboard*

*Velocity-sensitive, aftertouch-sensitive

Sound source section

Synthesis method

SGX-2: Premium Piano (acoustic piano)

EP-1: MDS Electric Piano (electric piano)

HD-1: High Definition Synthesizer (PCM)

AL-1: Analog Synthesizer (analog modeling)

CX-3: Tonewheel Organ (tonewheel organ)

STR-1: Plucked Strings (physical modeling)

MOD-7: Waveshaping VPM Synthesizer (VPM synthesis)

MS-20EX: CMT analog modeling)

PolysixEX: CMT analog modeling)

Maximum polyphony *1*2 SGX-2: 100 voices*3

EP-1: 104 voices

HD-1: 140 voices

AL-1: 80 voices

CX-3: 200 voices

STR-1: 40 voices

MOD-7: 52 voices

MS-20EX: 40 voices

PolysixEX: 180 voices

Preset PCM AM 496MB / DISK 2.3G (ROM 1,771 multisamples, 3,955 drum samples)

PCM RAM approx. 2GB*4

Wave sequence Preload: 377 types, User memory: 598 types

Supports stereo multisamples, can be synced for each note, can be set based on tempo

Sequencer/Recorder

Tracks 16 track MIDI sequencer + 16 track audio (hard disk)

Recorder + 1 master track

Number of songs 200 songs

Resolution 1/480

Tempo 40.00 to 300.00 (in 1/100 BPM units)

Maximum storage capacity 400,000 MIDI events (MIDI data only) or 300,000 audio events (audio data only)

MIDI tracks 16 tracks + 1 master track, 697 presets/100 user patterns (per song), 18 presets/16 user template songs, format: KORG (NAUTILUS, KRONOS, OASYS) format, SMF format 0, 1 compatible

Audio tracks Maximum simultaneous playback 16 tracks, maximum simultaneous recording 4 tracks, WAVE file format 16bit/24bit, maximum continuous recording time 80 minutes (mono), automation: volume, pan, EQ, send 1/2, maximum 10,000 regions, event anchor function, BPM adjust function

Other functions RPPR (Realtime Pattern Play/Recording) (1 set per song), auto song setup function

General

Audio output [L/MONO, R, Individual 1-4]

Φ6.3mm TRS phone jack (balanced)

Output impedance: 350Ω (stereo), 175Ω (mono)

Nominal level: +4.0dBu

Maximum level: +16.0dBu

Load impedance: 600Ω or more

L/MONO only, can be controlled by MASTER VOLUME slider

[Headphones]

Φ6.3mm TRS phone jack

Output impedance: 33Ω

Maximum level: 60+60mW (33Ω)

Can be controlled by MASTER VOLUME slider

[USB B]

Format: 24bit

Sample rate: 48kHz

2 channels (same output as L/MONO, R)

Audio input [AUDIO INPUT1, 2]

Φ6.3mm TRS phone jack (balanced)

Input impedance: 10kΩ

Nominal level (LINE): +4.0dBu

Maximum level (LINE): +16.0dBu

Nominal level (MIC): -22dBu

Maximum level (MIC): -10dBu

Source impedance: 600Ω

[USB B]

Format: 24bit

Sample rate: 48kHz 2 channels

Control input Damper pedal (half damper compatible)

Assignable switch, assignable pedal

MIDI IN, OUT, THRU

USB USB A (TYPE A): For connecting to QWERTY keyboard, USB MIDI, USB storage device, USB Ethernet adapter

USB B (TYPE B): MIDI/audio interface, MIDI 1 (16ch) in/1 (16ch) out, audio: 2ch in/2ch out

Complies with USB standard Ver.2.0, high speed (480Mbps compatible)
