Size/Mass

Dimensions Width 89mm

Height 108mm

Depth 309mm

Weight 7.1 kg

Sound Source/Tone

Sound source VCM Organ, AWM2, FM

Tones Maximum number of simultaneous sounds VCM Organ + AWM2: 128 notes*, FM: 128 notes *Maximum number of sounds for VCM Organ and AWM2 combined

Number of voices 152 (Organ: 9 / Keys: 143)

Number of live set sounds 160 (Preset live set sounds: 104)

Controls

Keyboard Number of keys: 61

Keyboard Type Semi-Waited Waterfall Keyboard with Initial Touch

Display Full-dot LCD (128 x 64 dots)

Effects

Effects 35 types

Speaker/Amplifier 7 types (Rotary Speaker: 3 types, Amplifier: 4 types)

Reverb 1 type

Insertion effect Organ 1 channel (pre-drive) /Key A 2 channels (1: 35 type, 2: 35 type) /Key B 2 channels (1: 35 type, 2: 35 type)

Master EQ 3-band (MID: frequency changeable)

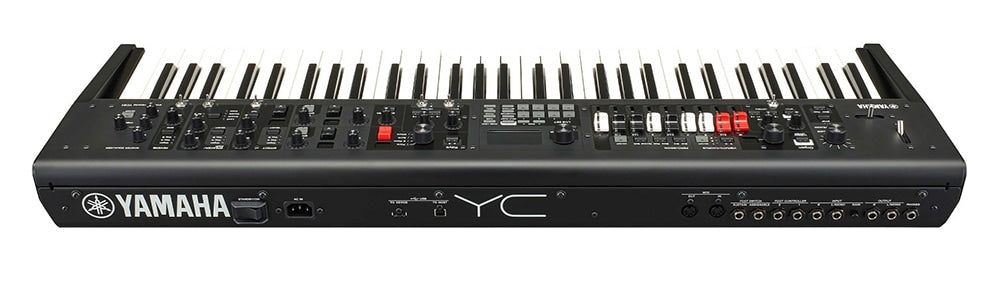

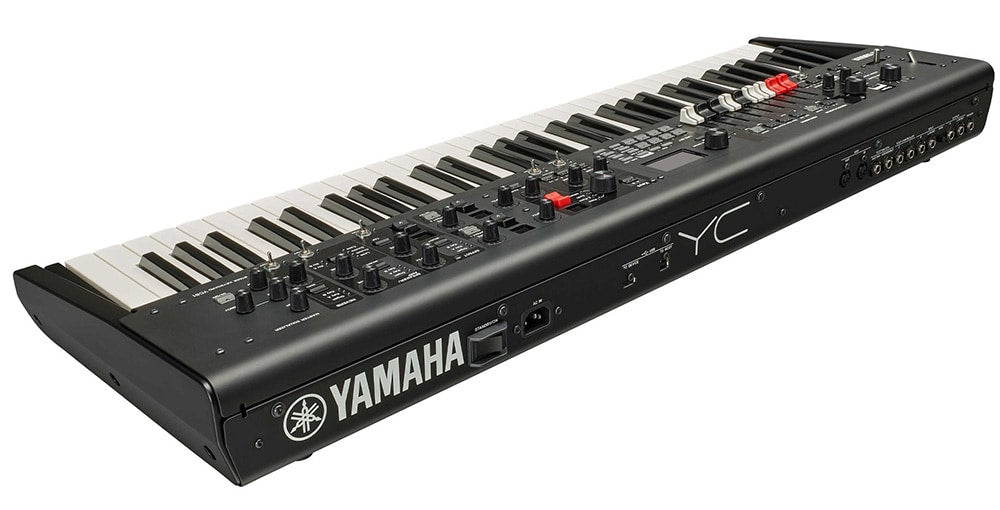

Connections

Line Out OUTPUT [L/MONO]/[R] (standard phone jack, unbalanced)

HEADPHONES [PHONES] (stereo standard phone jack)

FOOT CONTROLLER FOOT CONTROLLER [1]/[2], FOOT SWITCH [SUSTAIN]/[ASSIGNABLE] (standard, unbalanced)

MIDI MIDI [IN]/[OUT], MIDI

USB USB [TO HOST]/[TO DEVICE]

AUX INPUT [L/MONO]/[R] (standard phone jack)

Power Supply

Rated power supply AC100V 50/60 Hz

Power consumption 15 W

Accessories

Accessories Operation manual (this manual) × 1, Warranty × 1, Power cord × 1, 2P-3P converter × 1
