AKAI / MPC Key 37 is a standalone synthesizer keyboard for music production that inherits MPC's innovative workflow. Over 100 built-in effects and a semi-weighted keyboard with aftertouch support provide a powerful workflow.
■Synthesizer
■37 keys

Product Summary
- Iconic MPC standalone production center with new form and 37-key keyboard
- Consolidates bead making workflow, sampling engine, sequencer, plug-in synth, and built-in effects.

sound
- Over 10GB of sounds and instruments from the Xpansion library, including Akai's world-class MPC plug-ins
- Equipped with over 100 studio-quality built-in effects and the perfect processor for creative production and mixes.

control surface
・37-key synth action keybed with aftertouch, pitch bender and modulation wheel
・Poly aftertouch & 16 level velocity/pressure sensitive MPC drum pads x 16
- 7-inch color touchscreen with multi-touch and gesture support, plus 4 assignable Q Link knobs perfect for real-time editing and performance

connection
・MIDI input/output x 2 and CV/Gate output x 8 (TRS jack x 4) compatible with studio outboard control
- Sampling and capturing audio using built-in line level inputs
・Onboard Wi-Fi for wireless data transfer and updates supports downloads, plugin management, and connection to Splice on the main unit
- Expand your workspace by importing large files with an SD card reader

■Technical specifications
Keyboard: 37-key synth action keybed with aftertouch/pitch bender & modulation wheel
pad:
16 velocity and pressure sensitive pads with RGB backlight
　4 Accessing the bank using the Pad Bank button
Knob:
4 touch-sensitive Q-Link knobs for 360° parameter control
Data encoder x 1 used as value adjustment and selection button
Dedicated function buttons x 31
display:
7 inches / 177 mm (diagonal)
151 x 94 mm (width x height)
Full color LED backlit display with touch interface
memory:
Processor: Quad-core ARMR processor
RAM: 2GB
Storage: 32GB (Free user storage 22GB or more)
Power supply: AC adapter (12V, 3.0A, center positive included)

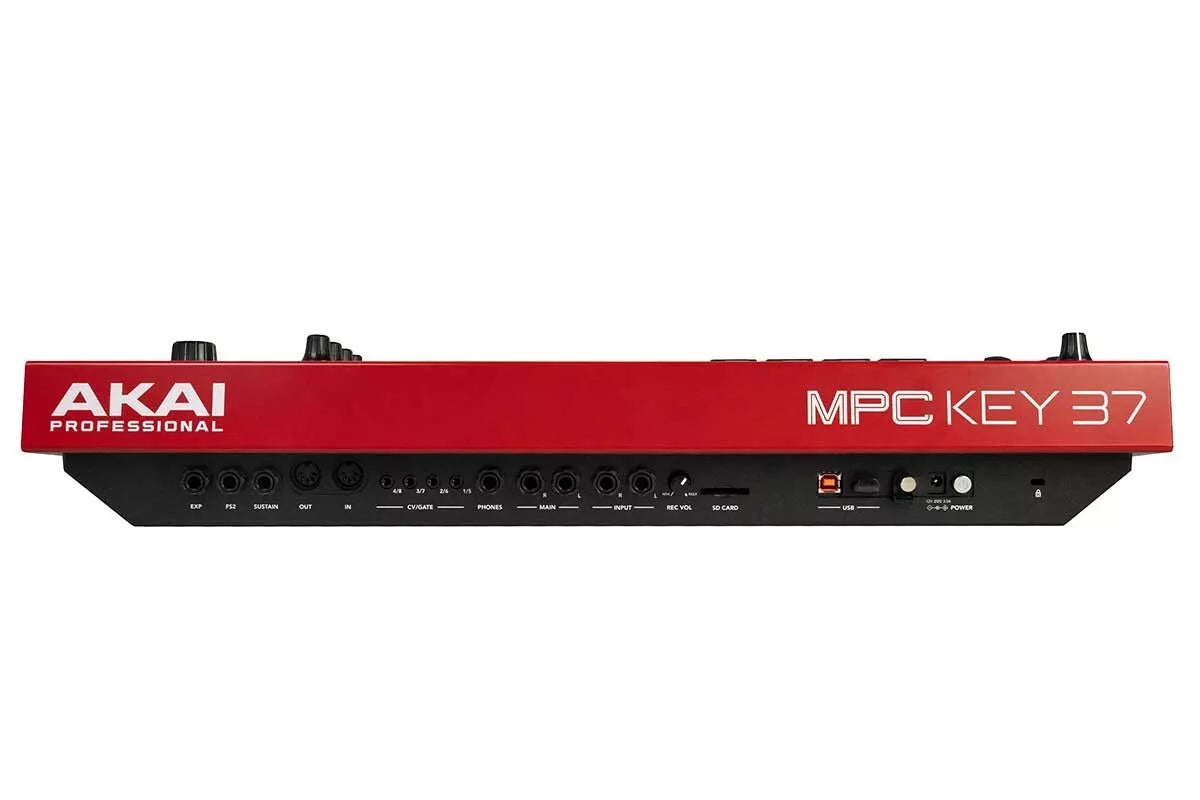

Connecting terminal:
6.35mm TRS input x 2 (stereo pair x 1)
6.35mm TRS output x 2 (stereo pair x 1)
3.5mm stereo headphone output x1
6.35mm sustain pedal x 1
Expression pedal x 1
FS2 input x 1
5 pin MIDI input x1
5 pin MIDI output x1
TRS CV/Gate output x 4 (total 8 outputs)
　USB Type-A port x1
　USB Type-B port x1
　SD Card slot x 1
Power adapter input x 1
Product dimensions (width x depth x height): 58.22cm x 31.39cm x 10.36cm
Weight: 4.0kg
