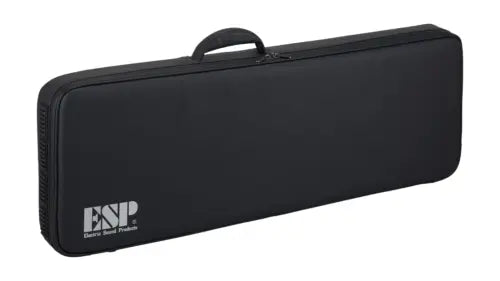

Hybrid Case for Guitar

A durable hybrid case that allows you to carry your precious instrument with confidence when moving it.

Made from a combination of highly impact-resistant materials, it protects your precious instruments from impact.

By combining the included dedicated pads, you can create settings that suit various shapes of musical instruments, and prevent the instrument from accidentally moving inside the case.

There is also a pouch inside the case that can store small items, such as maintenance goods and spare strings.

It also has a mesh pocket where you can put desiccant etc.

■Material

To protect your precious instruments, we use a structure that combines urethane foam, expanded polyethylene (EPE), and ABS resin with excellent cushioning properties.

The materials used comply with RoHS and Reach European environmental regulations.

In addition, the top and end parts are further reinforced with fiber reinforced plastic (FRP) and polycarbonate (PC).

The exterior fabric is made of polyvinyl chloride (PVC) leather, which has excellent abrasion and fading resistance, and the interior fabric is made of velour, which is soft to the touch to prevent scratching your precious instrument.

The configuration is as follows.

[Front/back/side]

1. Exterior fabric: black PVC leather

2. Polyurethane foam (5mm)

3.EPE (5mm)

4. ABS hollow structure plate (5mm)

5.EPE (20mm)

6. Polyurethane foam (5mm)

7. Interior fabric: Polyester (velor)

[Top End]

1. Exterior fabric: black PVC leather

2. Polyurethane foam (3mm)

3.EPE (5mm)

4. FRP reinforcement plate (5mm)

5. ABS hollow structure plate (5mm)

6. PC hollow reinforcement frame (5mm)

7.EPE (10mm)

8. Polyurethane foam (5mm)

9. Interior fabric: Polyester (velor)

■Accessory pouch

The case comes standard with a large-capacity pouch that can store spare strings, picks, maintenance goods, etc.

The sides and bottom of the pouch have hook-and-loop fasteners, so you can attach it to any part of the case that has hook-and-loop fasteners.

■Mesh pocket

Humidity control is extremely important to keep your instrument in optimal condition.

The case is equipped with a mesh pocket as standard for storing a humidity regulator.

■Setting

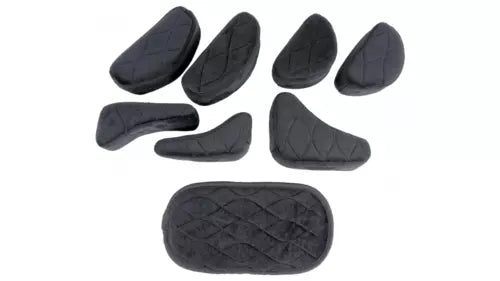

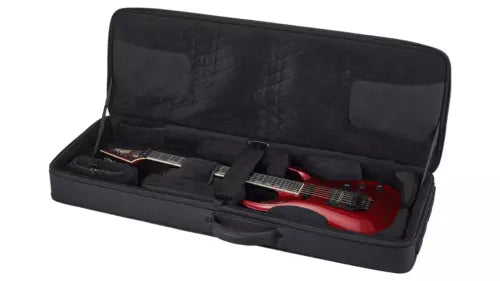

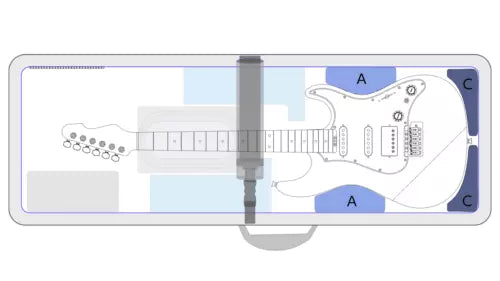

By setting the pads to match the instrument being stored, the instrument can be held securely. The image is an example of the setting.

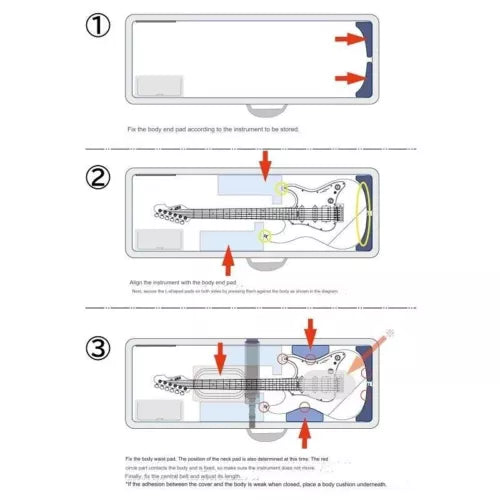

1. Fix the body end pad according to the instrument to be stored.

2. Align the instrument with the body end pad. Next, secure the L-shaped pads on both sides by pressing them against the body as shown in the diagram.

3. Fix the body waist pad. The position of the neck pad is also determined at this time. The red circle part contacts the body and is fixed, so make sure the instrument does not move. Finally, fix the central belt and adjust its length.

*If the adhesion between the cover and the body is weak when closed, place a body cushion underneath.

●Material

Exterior: PVC

Interior: velor

Each pad: Velor/EPE

Neck support pad: Velor/EVA

●Size

External dimensions: 1155W x 405D x 140H (mm)

Internal dimensions: 1085W x 335D x 70H (mm)

●Accessories

Waist pad: (A) x 2, (B) x 2

End pad: (C) x 2, (D) x 1

Body cushion x 1

Pouch x 1

●Weight

Approximately 6.0kg

●Compatible models

General purpose

*Items can be stored if the shape fits within the internal dimensions.
