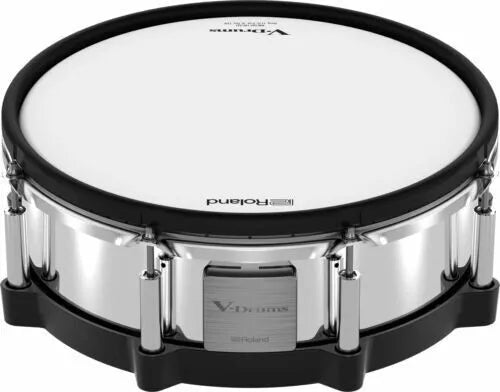

The PD140DS is a 14-inch snare V-pad that supports digital connections. The newly developed multi-element sensor system dramatically improves the accuracy of hitting point position and dynamics detection. It has a built-in cross stick sensor and enables rim shots with your hand on the striking surface.

■ V-drum pad

■ Snare

■ Pad size: 14 inches

■ Shell depth: 4.3 inches

■ Number of tensions: 8

■ Head: 3-ply mesh head (middle layer floating structure)

■ Corresponding playing method (trigger)

・ Head shot (multi-step hitting position detection function, wide dynamic range)

・ Rim shot (depth detection function, wide dynamic range)

・ Cross stick (automatic switching)

・ Brush sweep

■ Sensor system

・ Multi-element sensor system

・ Head sensor

・ Position sensor x 3

・ Rim sensor

・ Cross stick sensor x 3

・ Built-in sensing processor

■ Corresponding covering size:

・ 98 (width) x 1,060 (length) mm

・ Thickness: 1 mm or less

■ Connection terminal

DIGITAL TRIGGER OUT terminal

(Compatible with Roland drum sound sources equipped with DIGITAL TRIGGER IN terminal)

■ Power supply: Supply from DIGITAL TRIGGER IN terminal (DC5V)

■ Current consumption: 90mA

■ External dimensions: Width 380 mm Depth 380 mm Height 160 mm

■ Mass: Approximately 4.9 kg

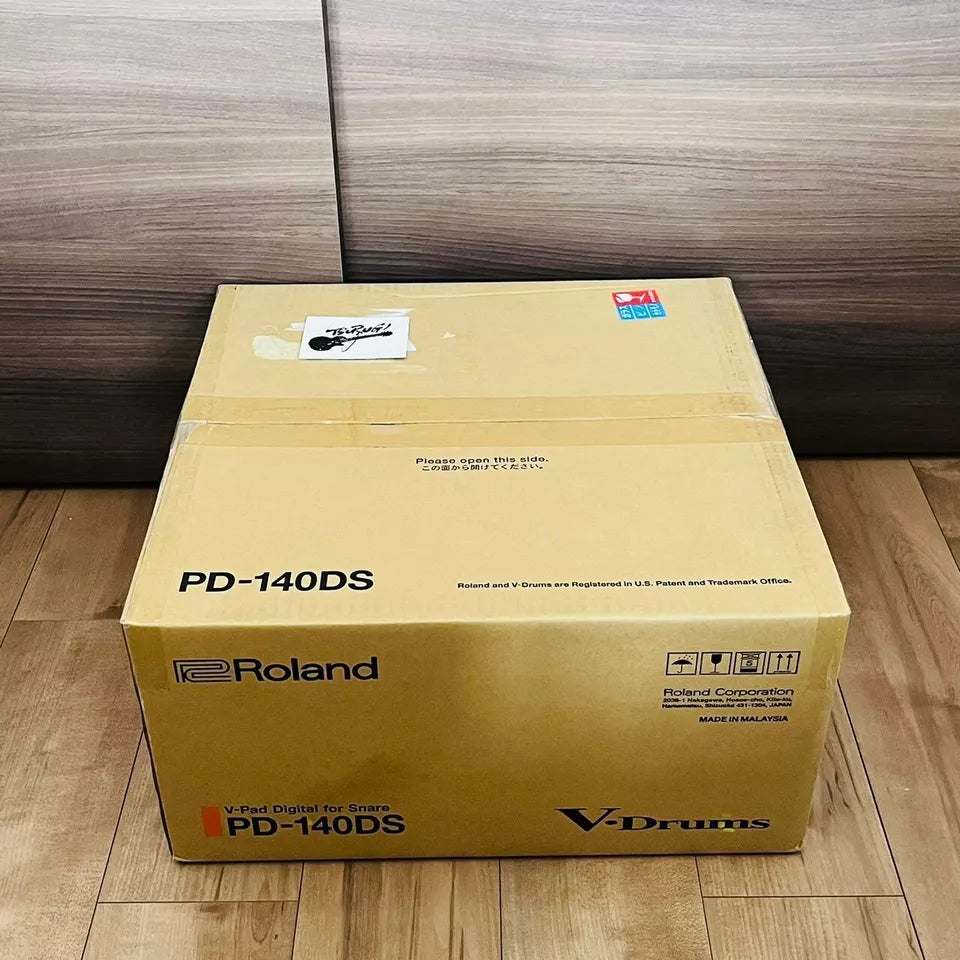

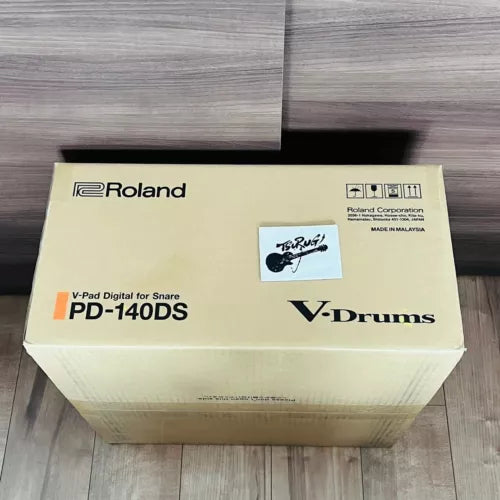

*This product is a brand new unopened product, but it will be a version without accessories such as cables.
