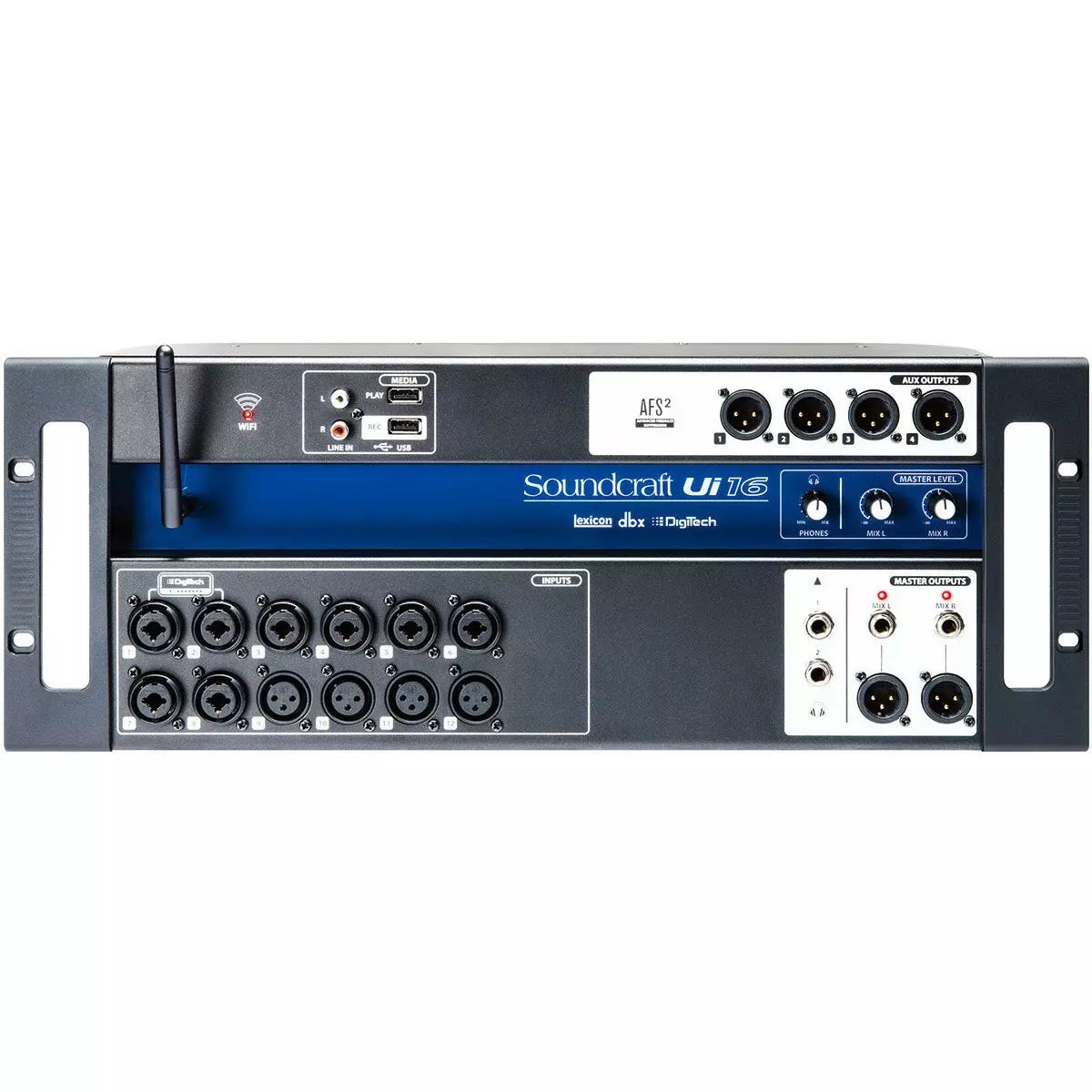

Remote control digital mixer with superior operability and sound quality that can be wirelessly controlled directly from a mobile device or PC.
The Ui Series can be controlled from remote locations with commercially available devices*1/2, and almost all functions can be operated wirelessly by connecting a tablet, smartphone, or PC directly via Wi-Fi. This allows for control from anywhere, making it ideal for situations where there are restrictions on where devices can be installed or where you don't want the devices to be conspicuous. Up to 10 terminals can be connected, allowing simultaneous operation of a single Ui from different locations, as well as simultaneous display of different information from a single input/output on multiple terminals. In addition, by excluding the control function from the main unit, an extremely compact body is achieved. The Ui16 can be rack-mounted in an EIA 3U space.
Specifications Input/output terminals Microphone/line input (XLR and standard phone (3-pin) compatible): 8 Microphone/line input (XLR): 4 Stereo line input (RCA):1 Mix L/R line output (XLR/standard phone (3P)):1 each AUX line output (XLR):4 (2 additional outputs can be added by switching the headphone jack)

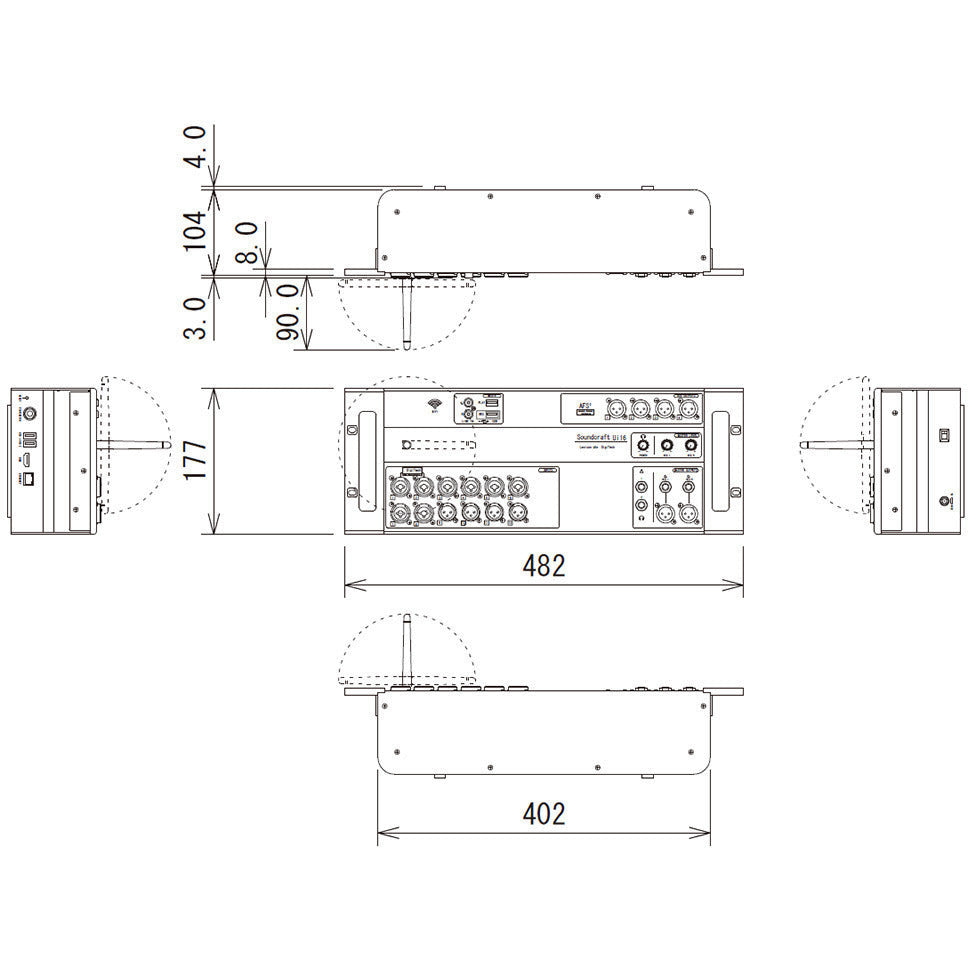

Headphone (standard phone):2 USB: 4 Ethernet (RJ45):1 Foot switch (standard phone):1 Buses Mix L/R bus: 1 each AUX bus: 4 (2 more buses can be added by switching the headphone jack) FX bus: 4 Power supply: DC18V (1.5A), AC adapter (AC100V, 50/60Hz) Power consumption: 25W Dimensions (W x H x D): 482 x 177 x 104 mm (excluding protruding parts) Weight: 3.6kg
1. The OS of the connectable terminal is iOS, Android, Windows, Mac, or Linux, and Wi-Fi communication capability is required. If the version is older, connection and operation may not be successful. 2. The communication distance between the Ui and the terminal is about 40 m. Since the Ui uses 2.4 GHz band frequencies, the communication distance may be affected when there are obstacles between the Ui and the terminal, when the Ui or terminal is placed directly on the ground or floor, when used outdoors in rainy weather, or when used in locations where radio wave emitting devices such as wireless LAN or microwave ovens are used. When using the device in a place where radio wave emitting devices such as wireless LAN or microwave oven are used, the communication distance may be shortened or operation may become impossible. If the product does not work properly, remove any obstacles or change the location where the product is used.
