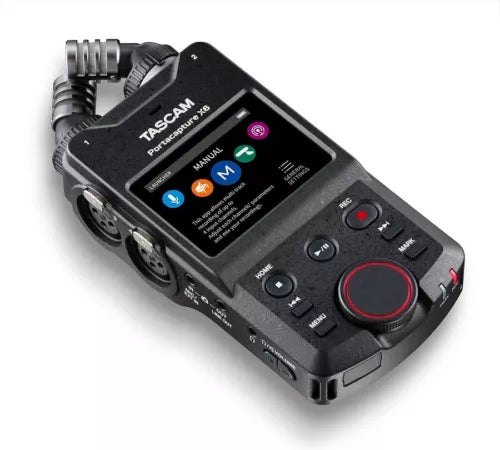

A 6-track handheld recorder with intuitive touch panel operation and 32-bit float recording.

■Handheld recorder

・Uses a 2.4-inch color touch panel for intuitive operation

・Up to 96kHz / 32bit float recording

・Multi-track recording of up to 6 tracks (4 tracks + 2 mixes)

・App launcher 6 recording apps in the launcher system: ``Manual'', ``Voice'', ``Podcast'', ``Music'', ``Field'', ``ASMR'', and an instrument tuner and metronome app.

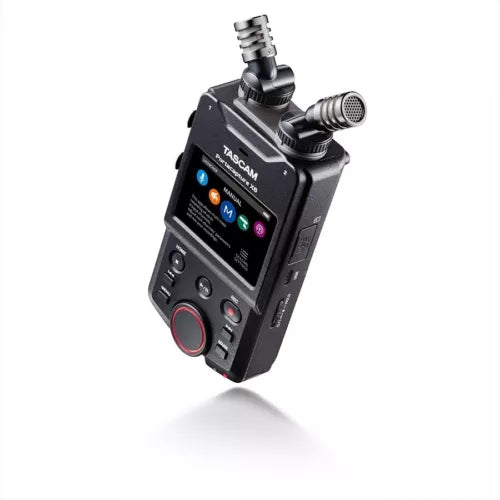

・Equipped with a stereo condenser microphone that can switch between A-B method and True X-Y method

・Equipped with 2 XLR mic/line inputs, compatible with phantom power (+24V/+48V)

・32-bit float processing realizes recording that maintains high resolution without sound distortion

・6in/2out USB audio interface function

・Remote control from the mobile app "Portacapture Control" is possible by installing the separately sold Bluetooth adapter "AK-BT1"

・Supports wireless timecode synchronization by installing the separately sold Bluetooth adapter "AK-BT1"

[Recorder section specifications]

■Recording media:

microSD card (64MB - 2GB), microSDHC card (4GB - 32GB), microSDXC card (48GB - 512GB)

■Recording and playback format:

　WAV(BWF)　 44.1k/48k/96kHz, 16/24-bit, 32-bit float

　MP3　 44.1k/48kHz, 128k/192k/256k/320kbps

■Number of channels

・Number of input channels

4 channels

・Number of recording tracks

6 tracks (4 tracks, stereo mix)

[Analog audio input rating]

■Mic input (balanced)

・Input terminals 3-4 (when input selection is set to "MIC")

connector

Equivalent to XLR-3-31 (1: GND, 2: HOT, 3: COLD)

(Supports phantom power only when MIC input is selected)

maximum input level

+2dBV

minimum input level

-75dBV

input impedance

　2.2kΩ or more

・Input terminals 3-4 (when input selection is set to "LINE")

connector

Equivalent to XLR-3-31 (1: GND, 2: HOT, 3: COLD)

maximum input level

+24dBu

minimum input level

-53dBu

input impedance

　9kΩ or more

■Line input (unbalanced) MIC/EXT IN terminal (compatible with plug-in power)

connector

φ 3.5mm (1/8") stereo mini jack

maximum input level

　0dBV

minimum input level

-67 dBV

input impedance

10k Ω or more (when plug-in power is OFF)

1.8k Ω or more (when plug-in power is ON)

[Analog audio output rating]

■Line output (unbalanced) LINE OUT terminal

connector

φ3.5mm (1/8") stereo mini jack

Specified output level

-14dBV

maximum output level

+6dBV

Output impedance

　210Ω

■Headphone output

connector

φ3.5mm (1/8") stereo mini jack

Maximum output

　45mW + 45mW (THD + N 0.1% or less, at 32 Ω load)

built-in speaker

0.4W (monaural)

[Control input/output rating]

■USB terminal

connector

　Type-C

format

　USB2.0 HIGH SPEED

■USB audio

Sampling frequency: 44.1k/48k/96kHz

Quantization bit depth: 24 bit

Number of inputs: 6 channels (output from this unit)

Number of outputs: 2 channels (input to this unit)

■Bluetooth device connection terminal

For Bluetooth adapter (AK-BT1) only

■Power supply

4 AA batteries (alkaline batteries, nickel metal hydride batteries, or lithium batteries)

USB bus power from computer

Dedicated AC adapter (TASCAM PS-P520U, sold separately)

■Power consumption

7.5W (maximum)

■External dimensions

75 x 174.3 x 37.2 mm (W x H x D, excluding protrusions)

■Mass

365g/265g (including battery/excluding battery)

■Operating temperature

0~40°C

■Included items

Portacapture X6 × 1
