Brand Name TEIN

Manufacturer's Model Number VSY20-C1SS3

KIT for 1 car (4 shock absorbers + 4 springs)

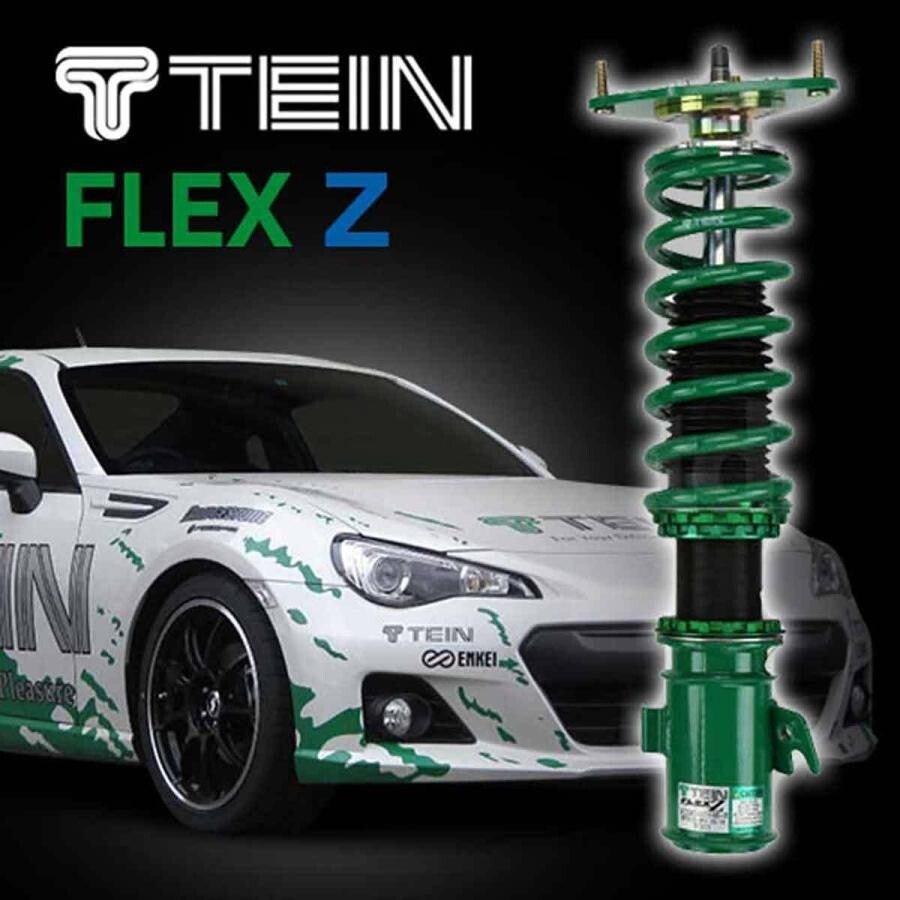

Full-length adjustable type for less ride quality change even when ride height is adjusted.

Equipped with a needle valve type 16-level rebound/rebound damping force adjustment mechanism that allows you to adjust the damping force (hardness) of the shock absorbers one by one by turning the adjustment dial, to adjust the ride and handling to your personal preference.

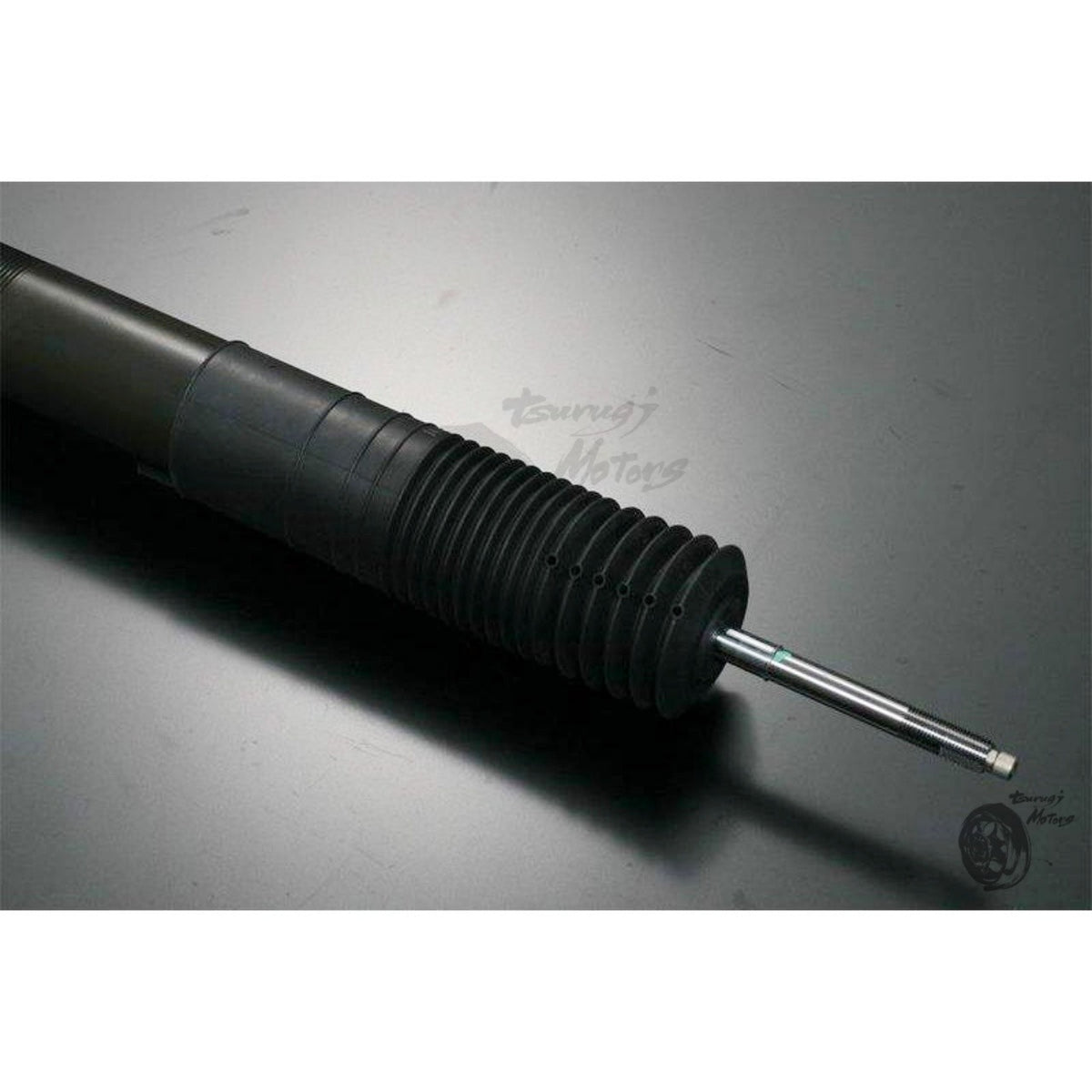

Twin-tube shock absorbers are adopted for street driving comfort, even when the vehicle is raised and lowered.

Compatible with the EDFC series, which allows you to control the damping force from inside the car.

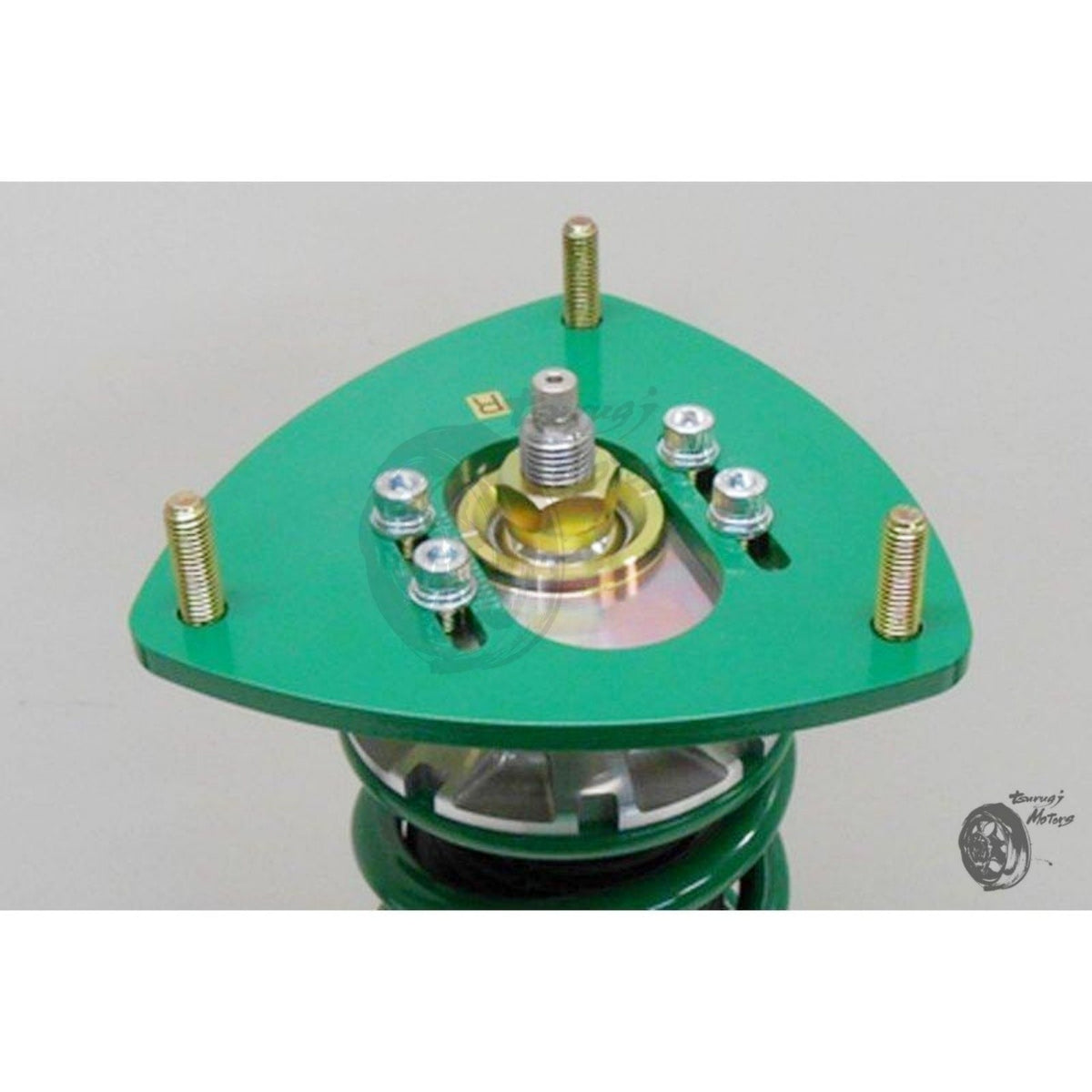

The upper mounts and lower brackets are coated with a bright, tan-green powder coating. Powder coating is a low-pollution coating technology that has excellent film strength and durability and does not use organic solvents.

The shell case is coated with TEIN's proprietary ZT Coat, a special surface treatment developed in-house, to resist peeling of the paint from bouncing rocks and other debris, and to provide high rust resistance.

The knuckle brackets of the strut type are thick enough and have optimum ribs to ensure high rigidity.

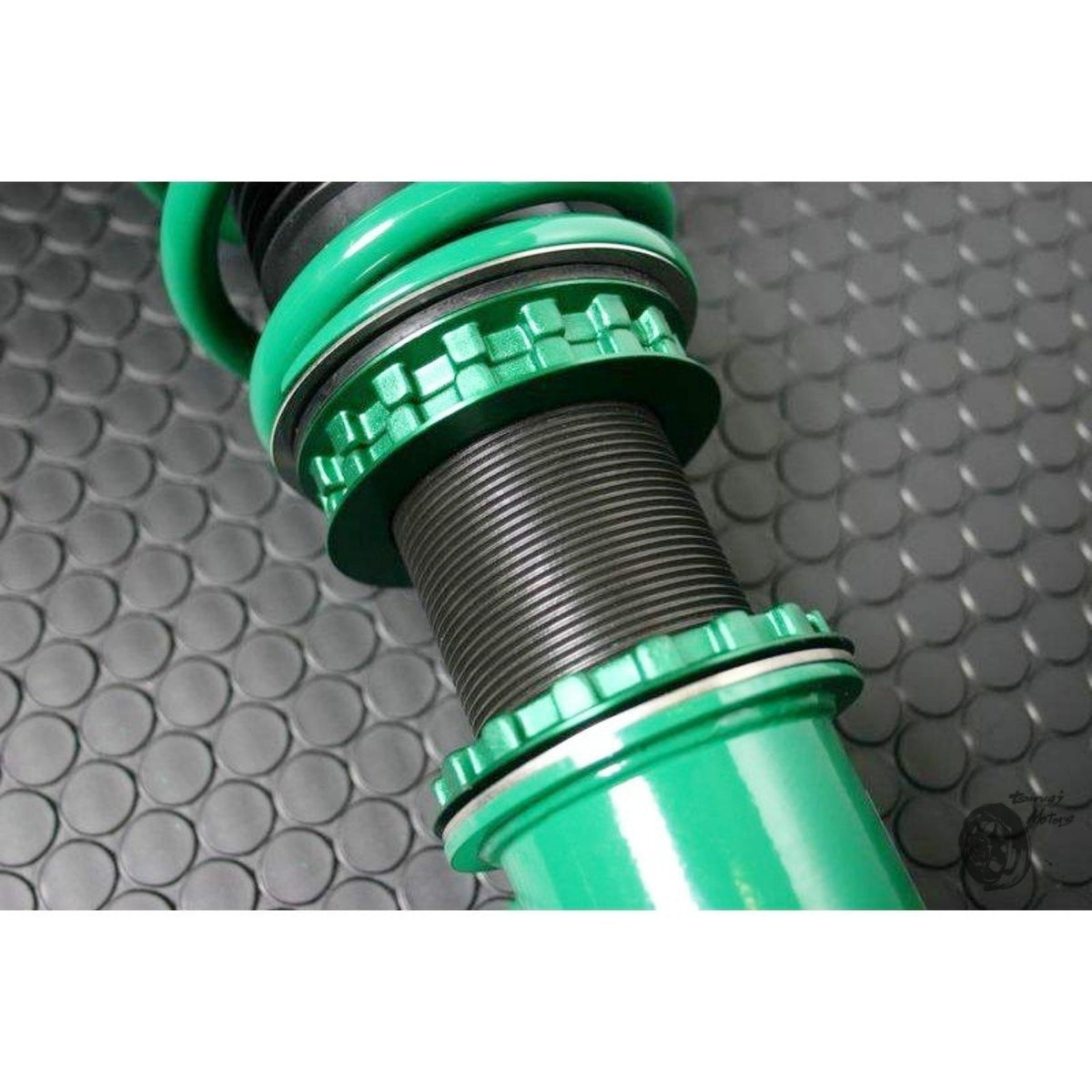

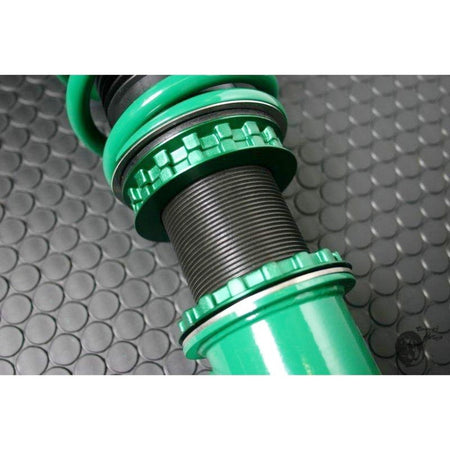

Forged aluminum spring seats and low-friction, hard resin thrust washers are used.

The included springs are made of SAE9254 material (tensile strength: 200kgf/mm2 or higher) and cold-formed to achieve excellent dent resistance and outstanding quality stability.

The exclusive high-performance oil has stable viscosity characteristics from low to high temperatures, maintaining smooth stroke and reliable damping force under various conditions.

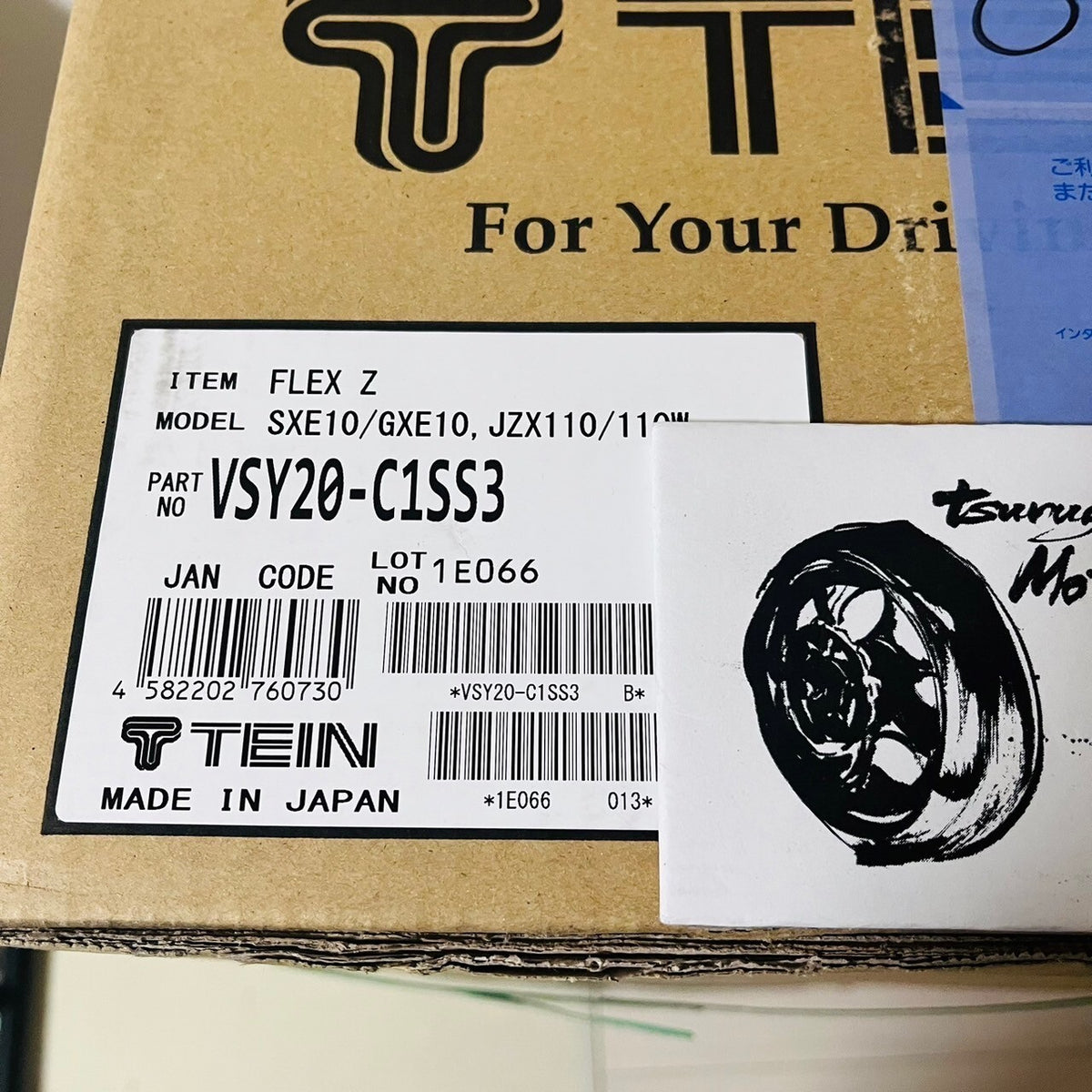

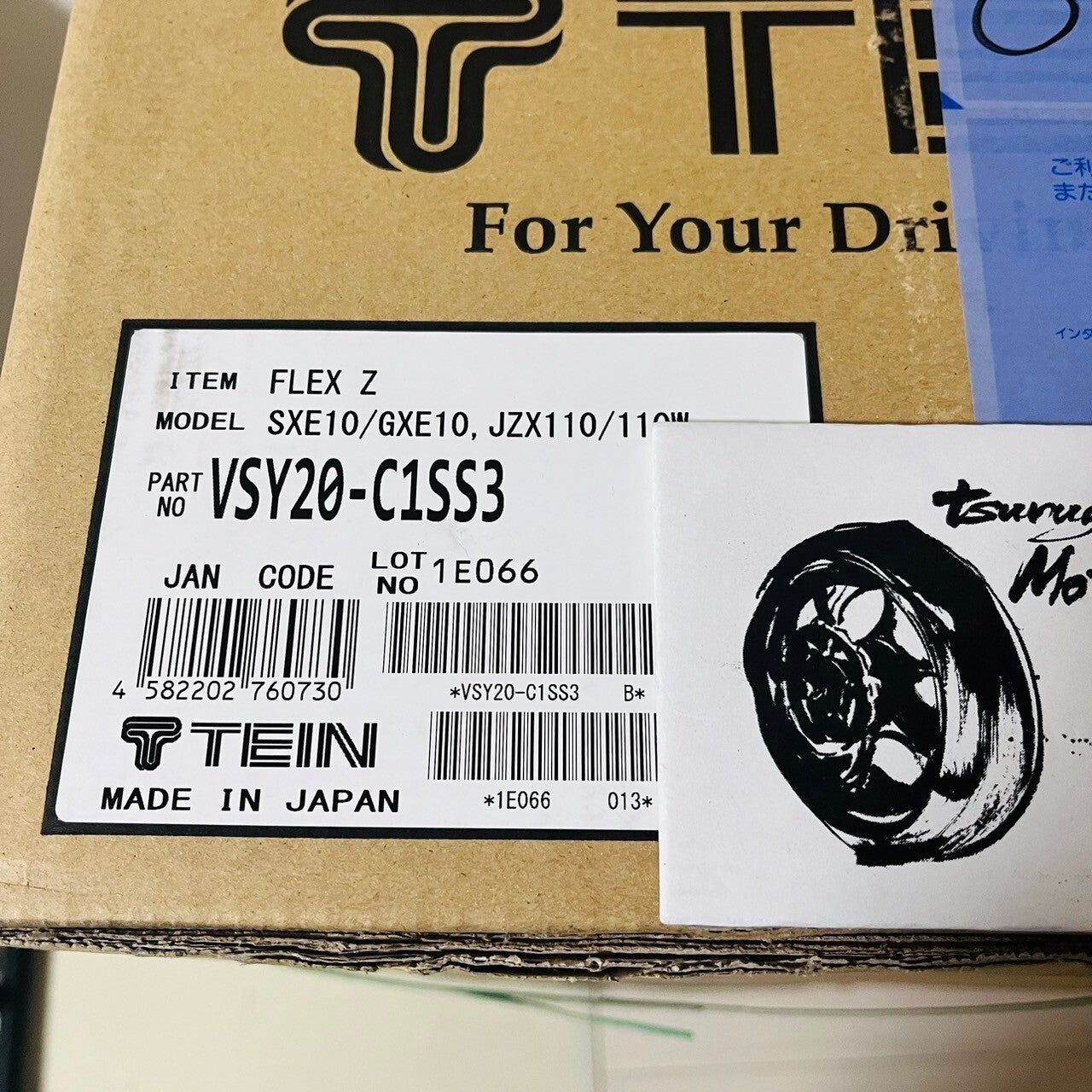

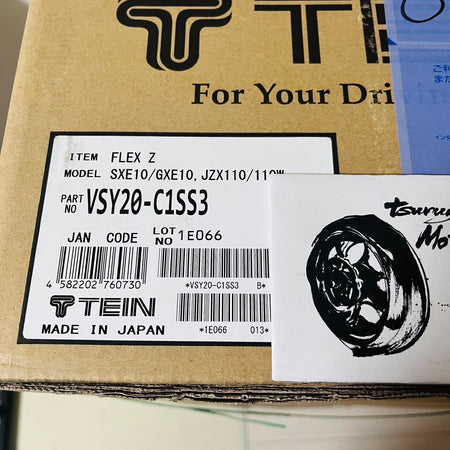

Manufacturer's Part Number: VSY20-C1SS3

Standard Ride Height Compared to stock(mm) : F=-35/R=-25

Maximum Ride Height Adjustment Range (mm) : F=-88 to +19 / R=-101 to +28

Recommended Ride Height Adjustment Range (mm) : F=-45 to -25 / R=-35 to -15

Standard spring rate (N/mm / Kgf/mm): F=98.1 / 10.0, R=78.5 / 8.0

Free length (mm) / Inside diameter (mm): F=200 / 70mm, R=225 / 65mm

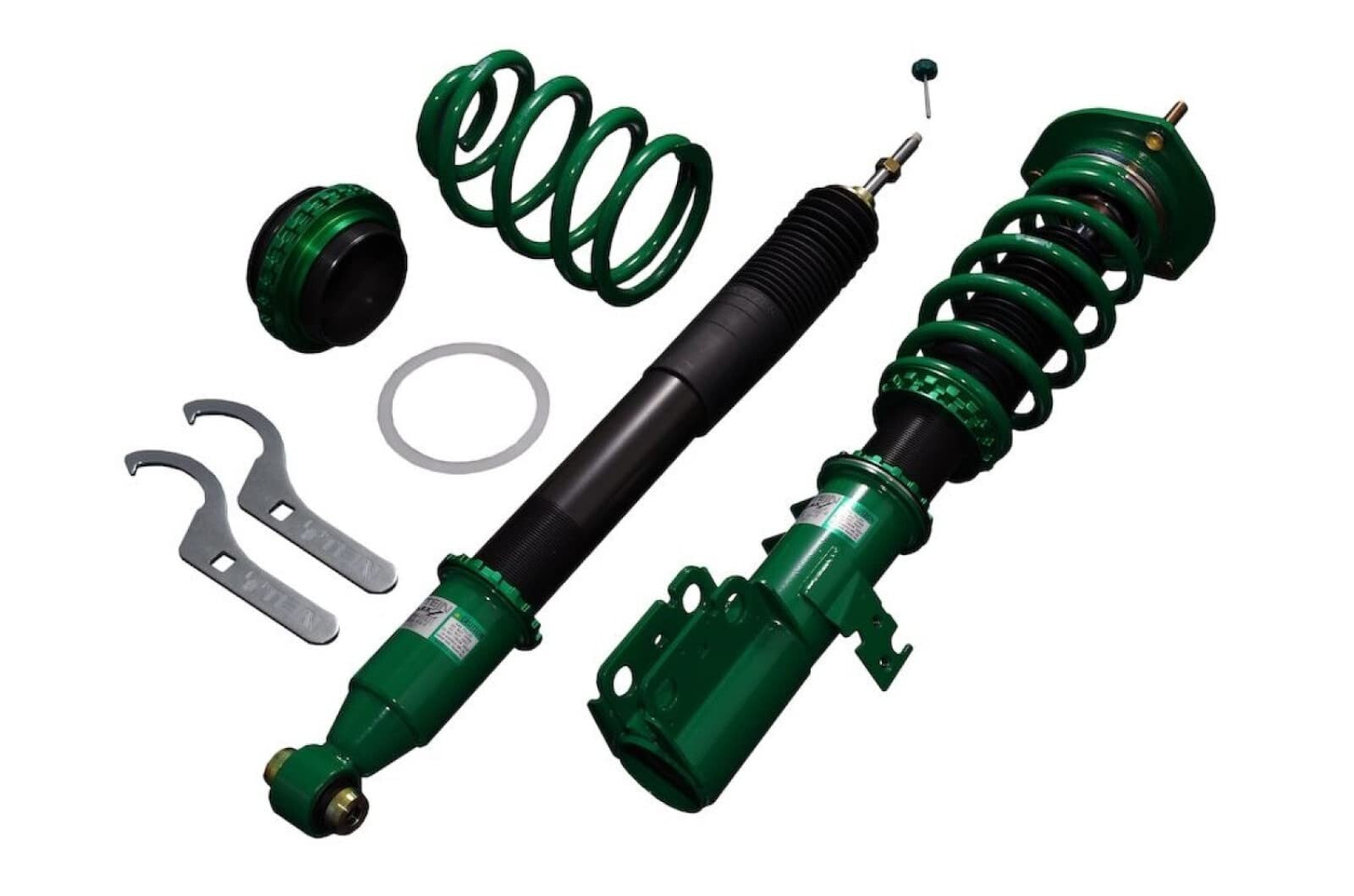

Set contents: 4 shock absorbers + 4 springs, special upper mounts for each model, special wrench

Product Notes

The above figures are for "Toyota Altezza (1998.10-2005.07) Drive: RWD Model: GXE10 Grade: AS200/Z-EDITION/L-EDITION". Please check the manufacturer's website as each car model is different.

If your car uses the factory mounts, the special upper mounts for each car model are not included.

The images are for illustrative purposes only and may differ slightly from the actual product.

TOYOTA ALTEZZA (1998.10-2005.07) Drive: RWD Model: GXE10 Grade: AS200/Z-EDITION/L-EDITION

Toyota Altezza (1998.10-2005.07) Drive: RWD Model: SXE10 Grade: RS200/Z-EDITION/L-EDITION
