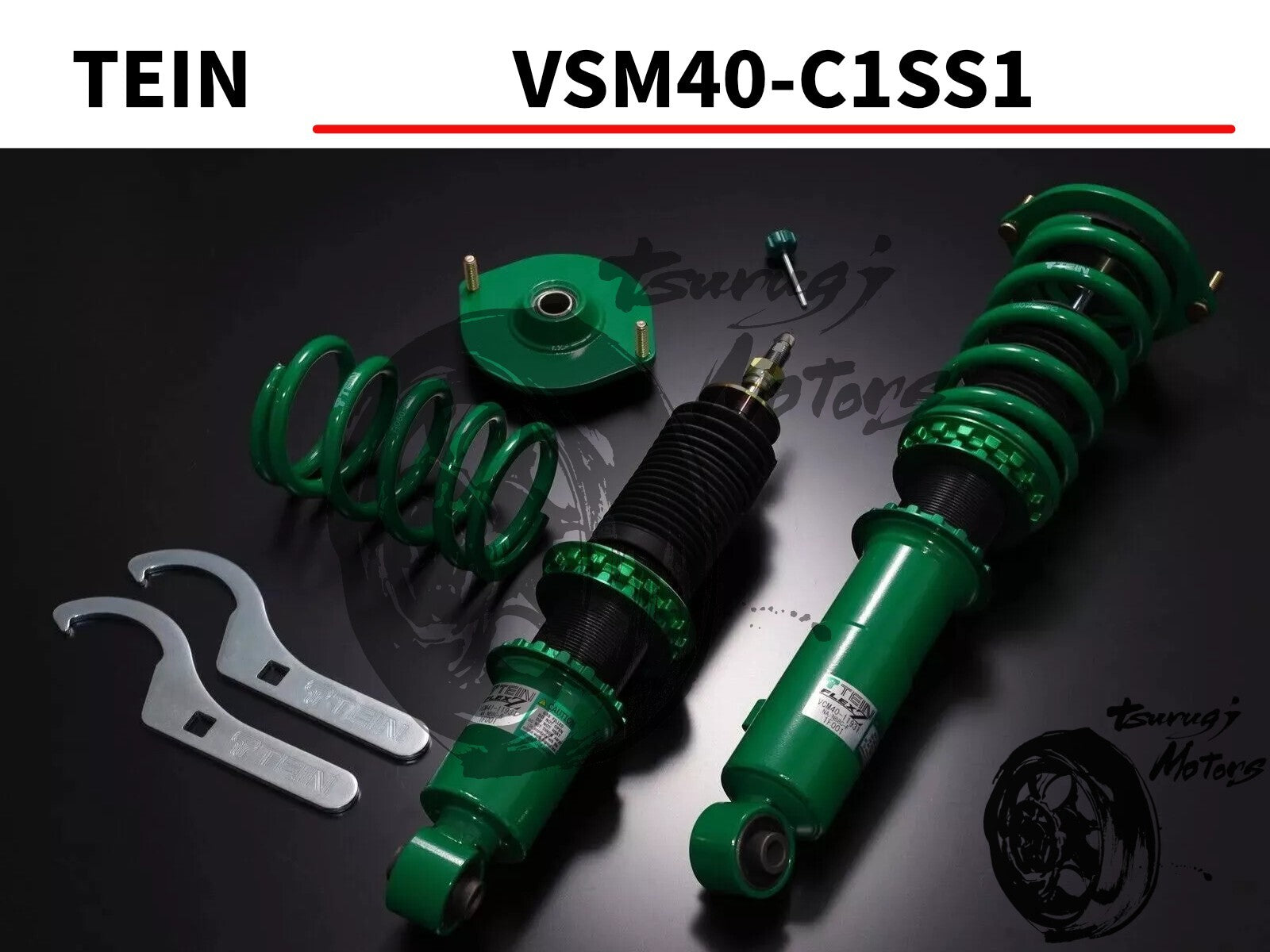

TEIN VSM40-C1SS1 FLEX Z COILOVERS Kit For Mazda NA8C/NB8C Roadster New

Description

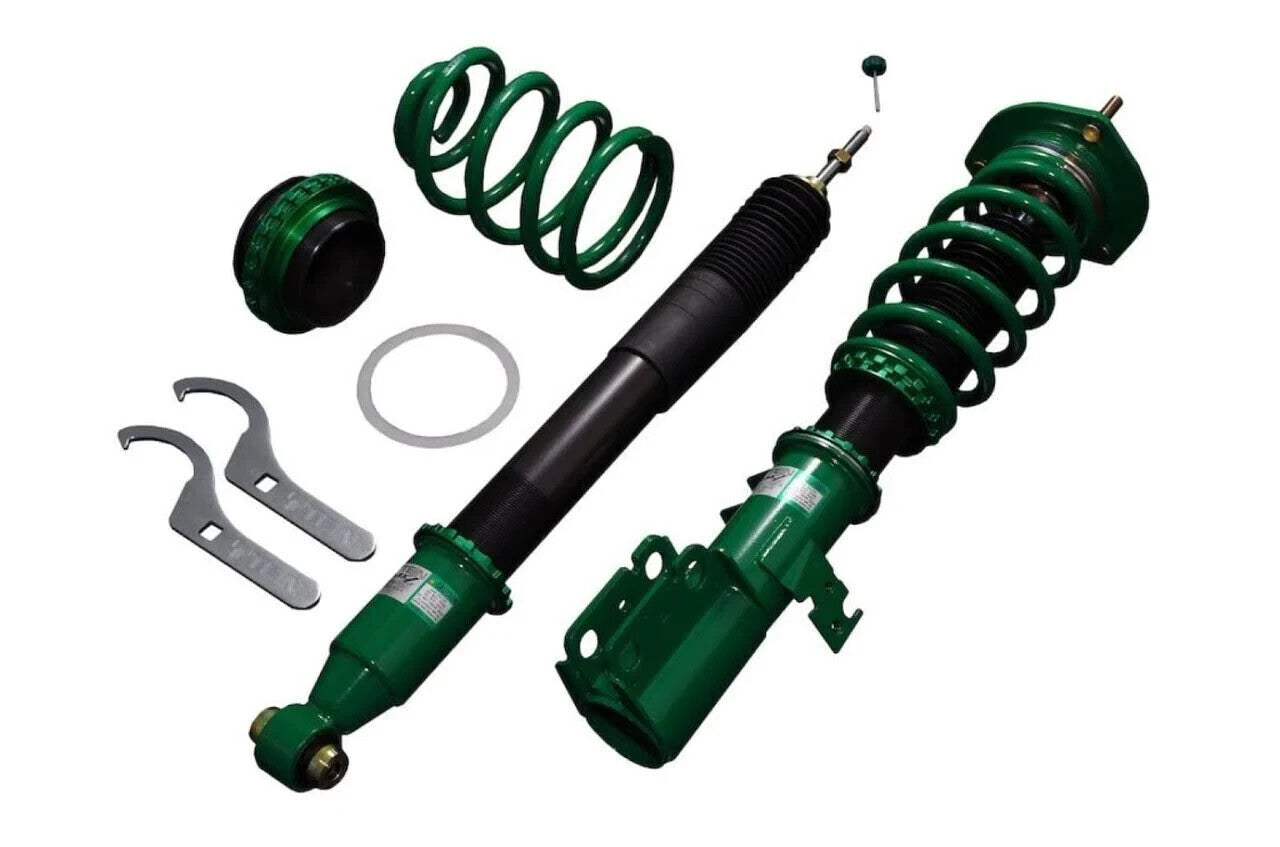

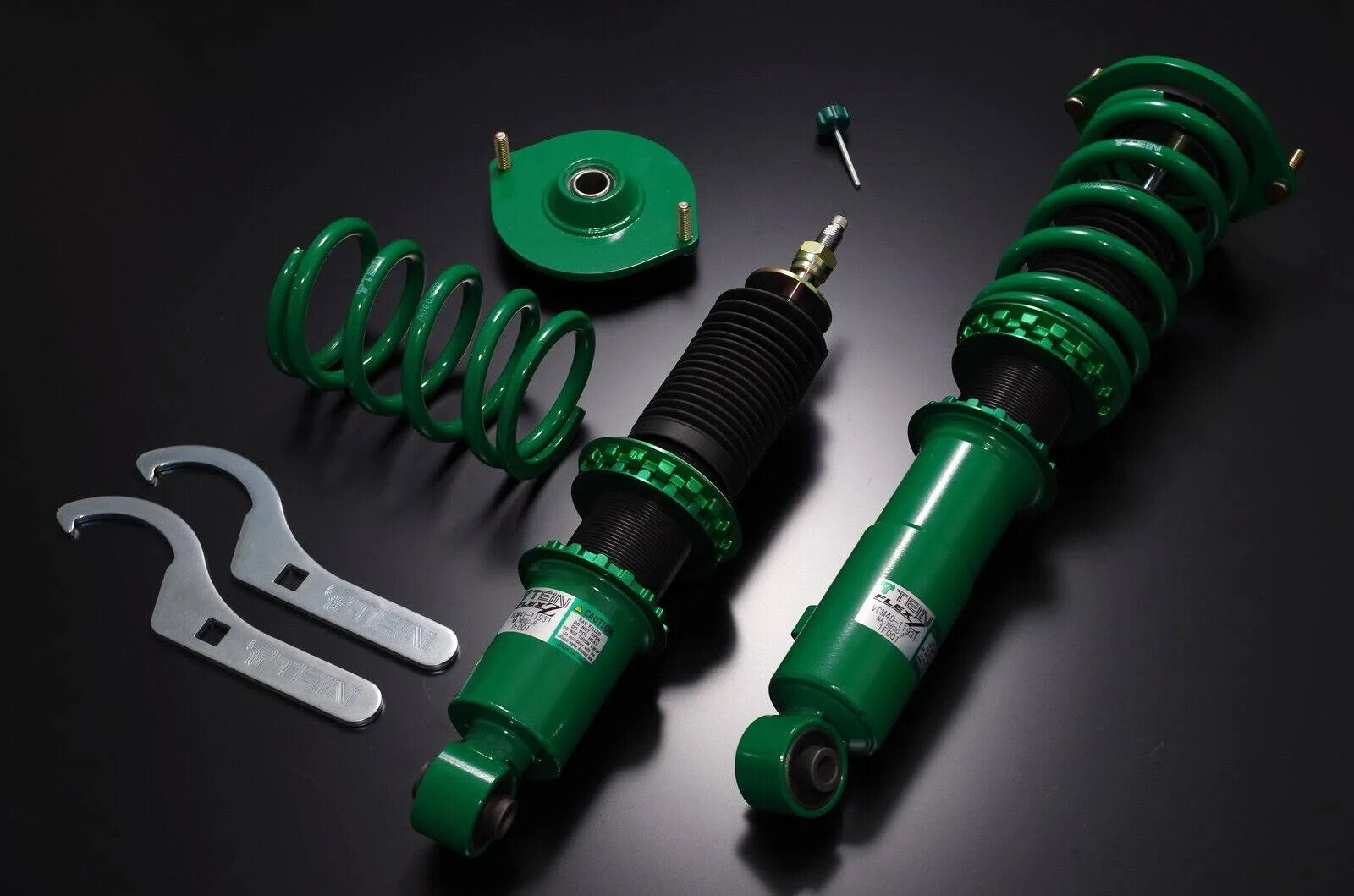

■ Complete kit with 4 shock absorbers and 4 springs

■ Full-length adjustable design minimizes ride quality even when adjusting vehicle height

■ Equipped with a needle valve-type 16-stage simultaneous rebound/compression damping force adjustment mechanism. Turning the adjustment dial linearly changes the shock absorber's damping force (stiffness) step by step, allowing you to customize ride quality and handling to your liking.

■ Twin-tube shock absorbers are designed for street comfort, even with wheel sizes increased and lowered.

■ Compatible with the EDFC series, which allows damping force to be controlled from inside the vehicle.

■ The upper mounts and lower brackets are powder-coated in vibrant TEIN green. This powder coating offers excellent film strength and durability, and is a low-pollution coating technology that does not use organic solvents.

■ The shell case is finished with TEIN's proprietary "Z" surface treatment, developed in-house. The "T-Coat" coating provides excellent resistance to paint peeling caused by stone chips and other factors, as well as enhanced rust resistance.

■ The strut-type knuckle bracket features ample thickness and an optimized rib shape for high rigidity.

■ In addition to the forged aluminum spring seat, it features a low-friction, hard resin thrust washer.

■ The included spring is cold-formed using SAE9254 steel (tensile strength of 200 kgf/mm2 or higher), achieving excellent sag resistance and outstanding quality stability.

■ The dedicated high-performance oil has stable viscosity characteristics from low to high temperatures, maintaining smooth stroke and reliable damping force under a variety of conditions.

■ Manufacturer Part Number: VSM40-C1SS1

■ Base Ride Height (Compared to OEM): F=-35 / R=-40

■ Maximum Ride Height Adjustment (Compared to OEM): F=-77 ~ +20 / R=-93 ~ -1

■ Recommended vehicle height adjustment range (mm) compared to OEM: -45 ~ -25 / R=-50 ~ -30

■ Standard spring rate (N/mm / Kgf/mm): F=68.6 / 7.0, R=58.8 / 6.0

■ Free length (mm) / Inner diameter (mm): F=175 / φ70, R=150 / φ70

■ Set contents: 4 shock absorbers + 4 springs, vehicle-specific upper mounts, and dedicated wrench

Product notes

* The above figures are for the Mazda Roadster (1989.09-1998.01), Drive: FR, Model: NA6CE, Grade: S-SPECIAL/V-SPECIAL. Actual dimensions may vary depending on the vehicle model. Please check the manufacturer's website.

* For vehicles using OEM mounts, the vehicle-specific upper mounts are not included.

*Images are for illustrative purposes only and may differ slightly from the actual product.

■ Mazda Roadster (September 1989-January 1998) Drive: FR Model: NA6CE Grade: S-SPECIAL/V-SPECIAL

■ Mazda Roadster (August 1993-December 1997) Drive: FR Model: NA8C Grade: S-SPECIAL/V-SPECIAL/M-PACKAGE

■ Mazda Roadster (January 1998-August 2005) Drive: FR Model: NB6C Grade: BASE MODEL/M PACKAGE/SPECIAL PACKAGE

■ Mazda Roadster (January 1998-August 2005) Drive: FR Model: NB8C Grade: S/RS/VS

 Do not purchase if you are not certain it will fit your car.

Please check Manufacturer Part Number before purchasing.
