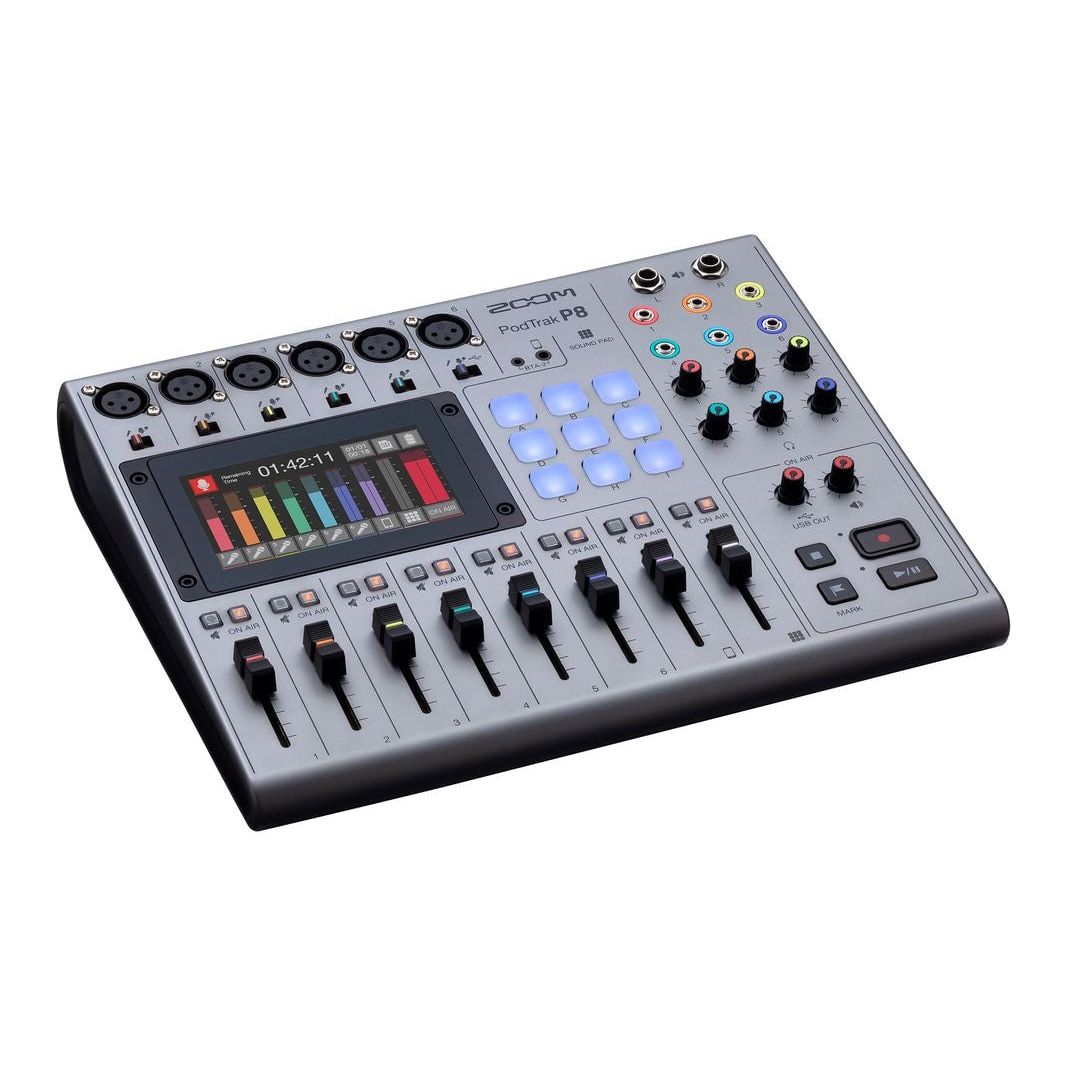

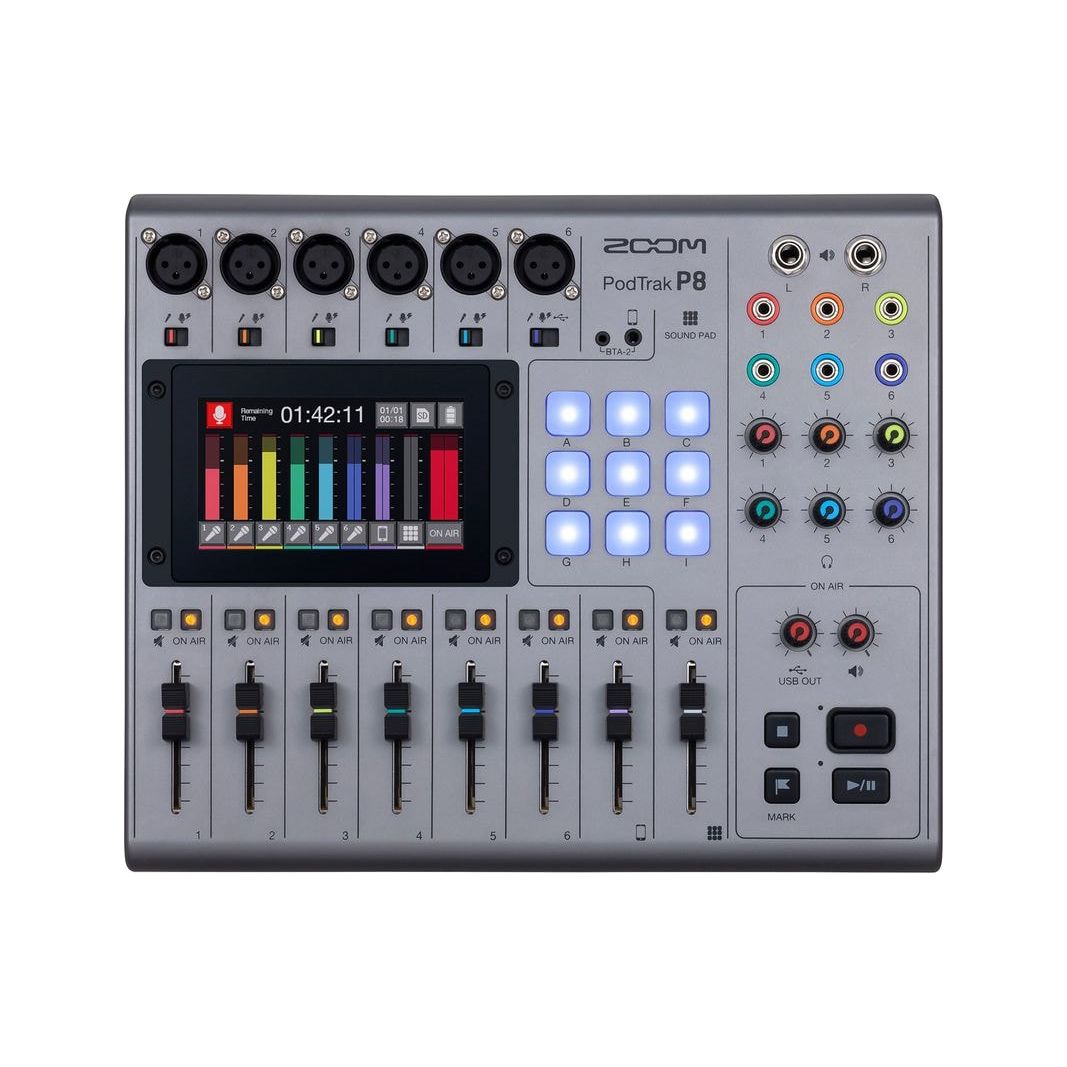

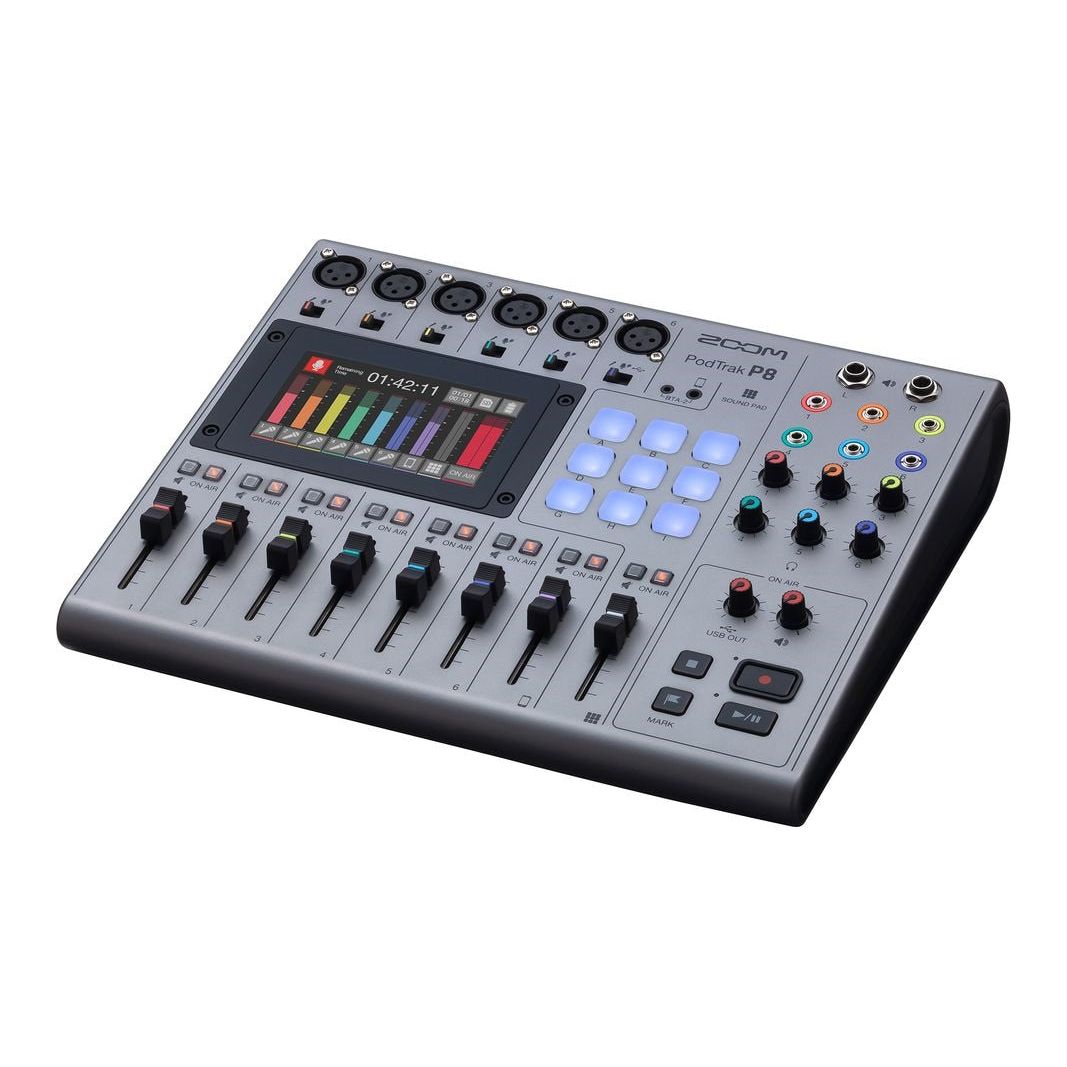

Multi-track recorder
Podcast support
6 microphone inputs
6 headphone outputs
Product Specifications
Input/Output Number of channels
Number of input channels: Mic input: 6 (monaural) Smartphone input: 1 (stereo)
Number of output channels: 2 (headphone x 6, speaker out L/R)
■Connections
MIC: 1
Specifications: XLR jack (No. 2 HOT)
Input gain: 0 to + 70 dB
Input impedance: 3 k ohm
Maximum input level: +5 dBu (@0dBFS)
Phantom power supply: +48 V

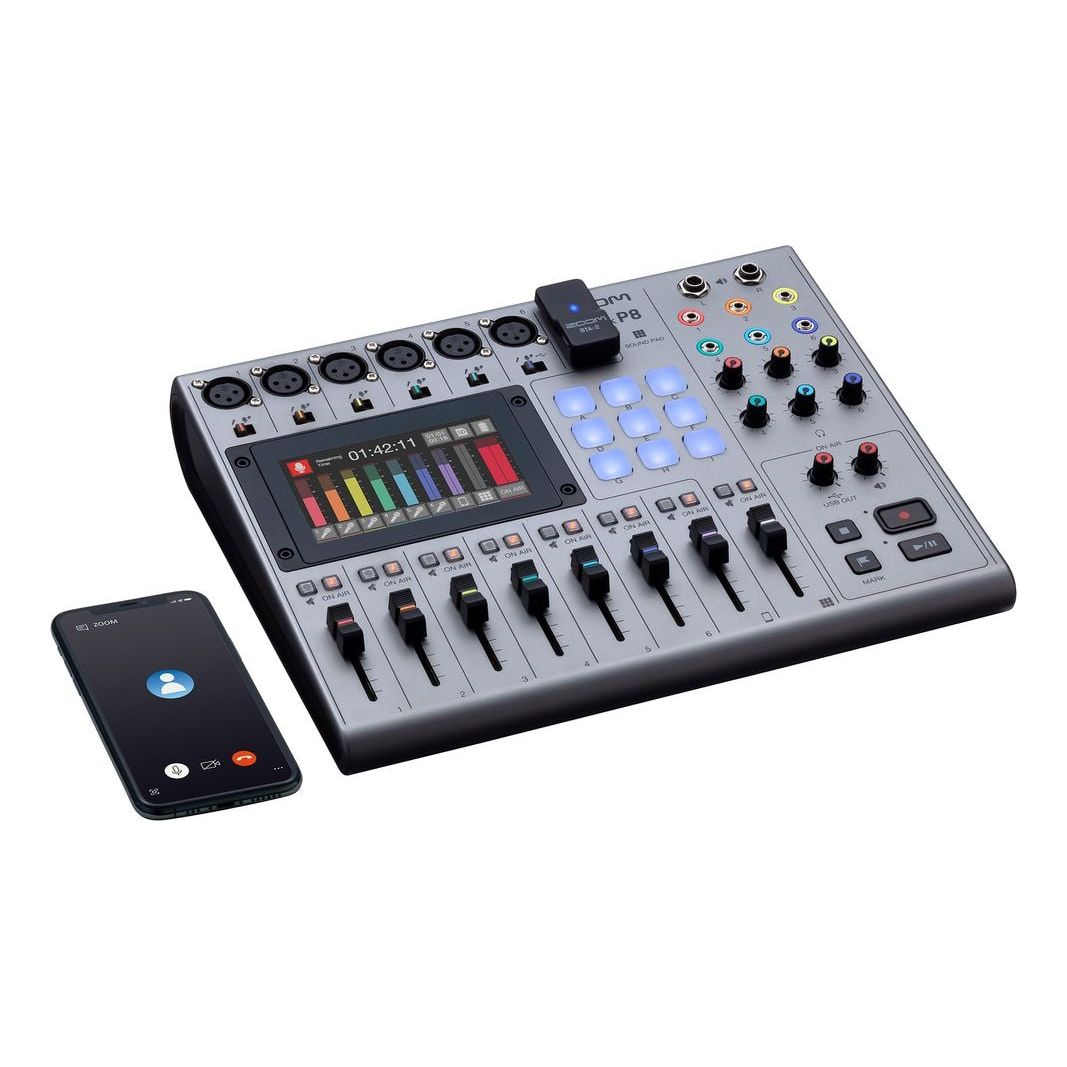

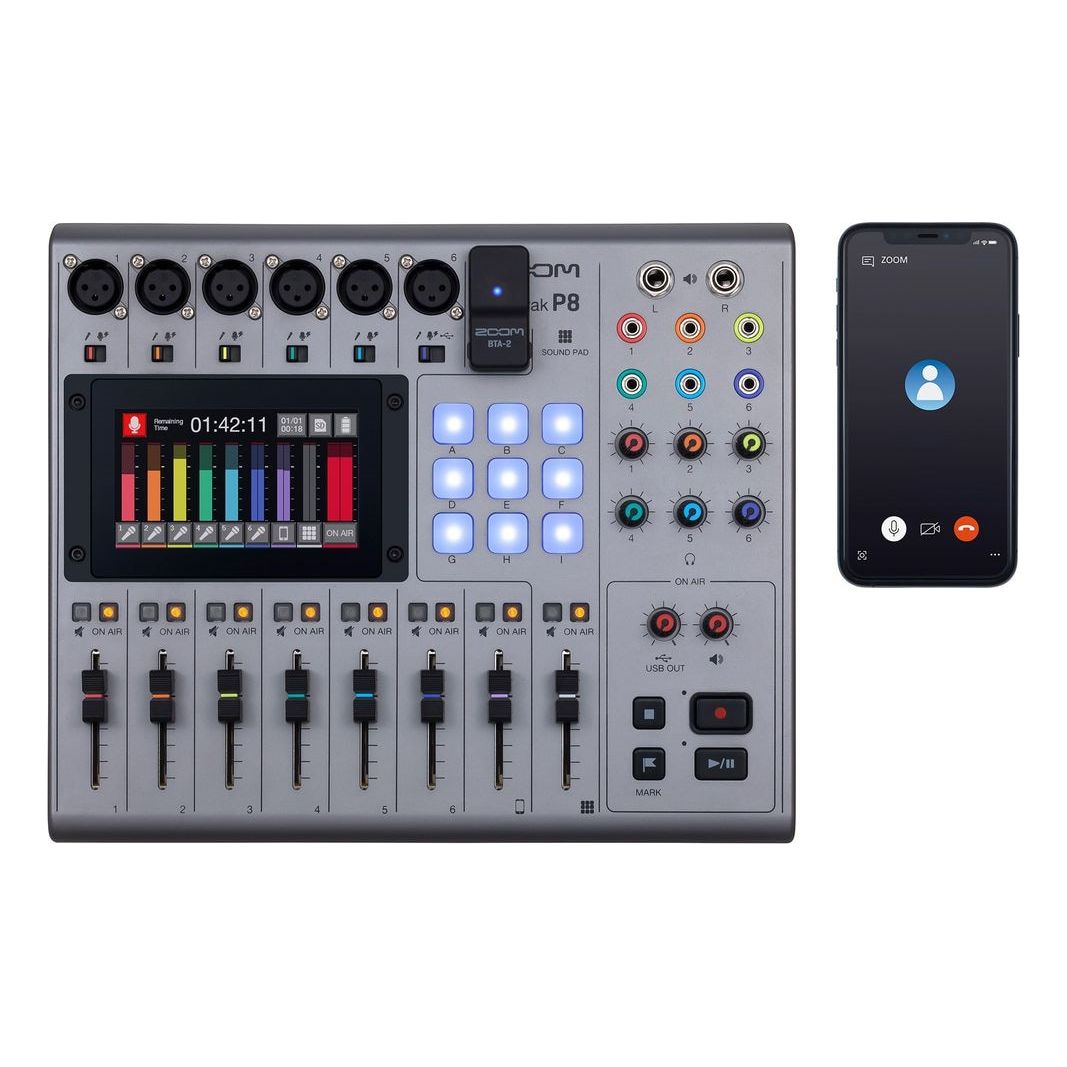

■Smartphone Connection Terminals
Specifications: TRRS mini-jack (4-pole / TIP: L, RING1: R, RING2: GND, SLEEVE: MIC)
Input impedance: 3 kΩ
Maximum input level: +2.5 dBu
USB: USB Type-C (audio interface function)
USB Type-C (audio interface function, mass storage function)
USB bus power is supported.
■Headphones:
Specifications 3.5 mm stereo mini
Maximum output level: 20 mW + 20 mW @32 Ω
Output impedance: 27 Ω
Speaker Out
Specifications TRS jack (balanced)
Maximum output level +5.5 dBu
Output impedance: 320 Ω
AC adapter: Power supply jack for AD-14
■Recorder:
Format WAV 44.1 kHz, 16-bit mono/stereo
Recording media SDHC-standard compatible card 4 GB to 32 GB (Class 10 or higher)
SDXC standard-compliant card 64 GB to 512 GB (Class 10 or higher)
Audio interface: 44.1 kHz, 16-bit, 2 in 2 out
Frequency Response: -1.0 dB: 20 Hz to 20 kHz @44.1 kHz sampling
■Input conversion noise: -124 dBu or less (IHF-A) @ +70 dB, 150 Ω input
Display: 4.3" full-color LCD (480 × 272), touch screen
Power supply

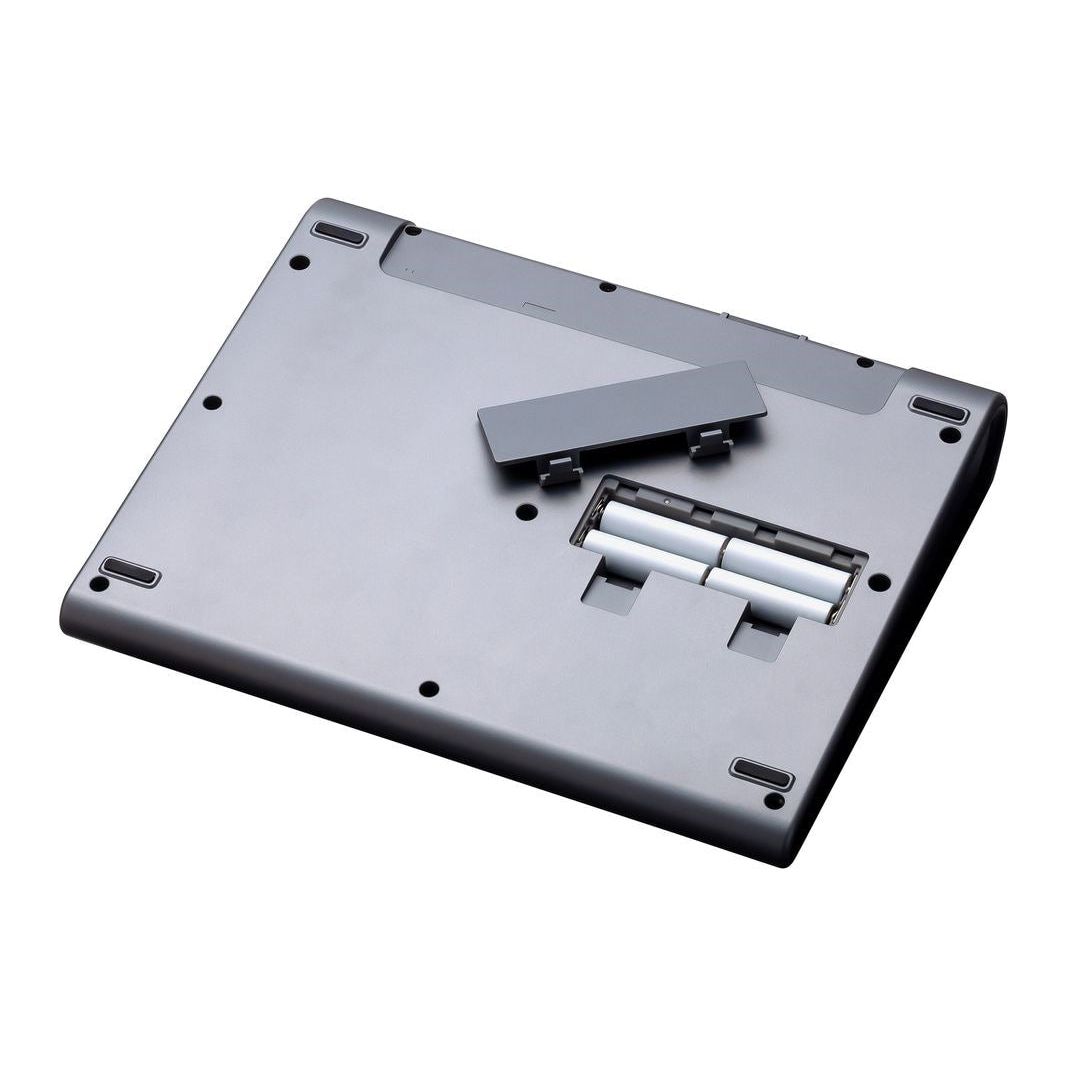

AA batteries x 4 (alkaline, nickel-hydrogen, or lithium batteries)
AC adapter (ZOOM AD-14): DC 5 V/1 A
USB bus power supported.
Approximate battery life for continuous use
44.1 KHZ/16-BIT 4CH recording to SD card (+48 V OFF, headphones 32 Ω load)
Alkaline battery: approx. 2 hours, Nickel-metal hydride battery (1900 mAh): approx. 3.5 hours
Lithium battery: approx. 6.5 hours
The above values are only a guide. The above values are only a rough guide. The battery life varies greatly depending on usage conditions.
Power consumption: 5 W
Dimensions: 295 mm (W) x 248 mm (D) x 61 mm (H)
Weight (main unit only): 1.43 kg * 0 dBu = 0.775 V
